DUCT ZONES - 5 ZONES Ø 160 mm WIFI

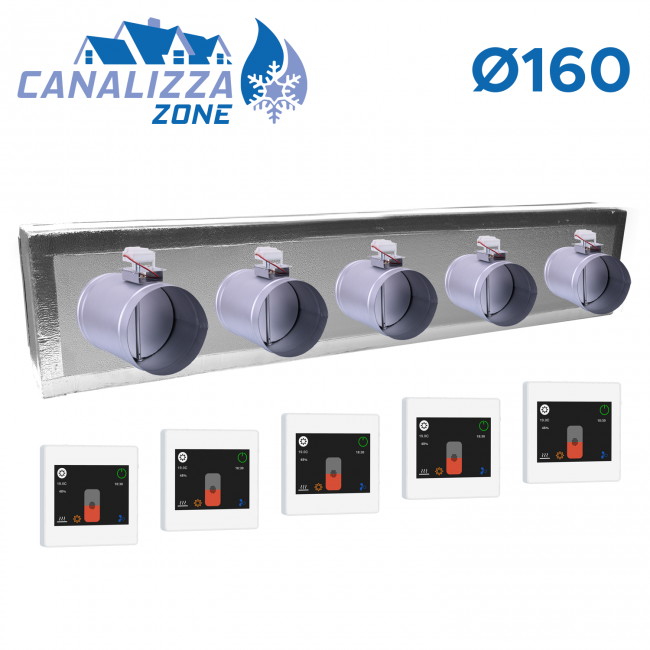

MOTORIZED PLENUM FOR ZONED AIR DISTRIBUTION
FEATURES:
New 3S targeted air distribution system dedicated to Gree by Argo ducted air conditioning systems
(compatible on request with all the best brands).
The Canalizza.Zone motorized plenum by 3S® is configurable with a minimum of 2 connections and a maximum of 7 (from 2 to 7 zones controllable separately) for rigid or flexible Ø 160 mm pipes.
The motorized dampers - controlled by wireless touchscreen room thermostats - installed directly on the plenum, allow targeted cooling/heating only of the "inhabited" areas between different environments, thus avoiding unnecessary energy waste.
An optimal solution for shops, offices, and homes, it allows for enormous reductions in system management costs, and a reduction in the size of the machines to be installed.
< p style="text-align: left; width: 650px;">Touchscreen room thermostats are available in white, and in the brand new Wi-Fi version (remote control of the entire system manageable via App from smartphone or tablet). *On request. < /p>The advantage of a zone-by-zone manageable system like the classic multi-split, with the elegance and refinement of the ducted system.
COMPOSED OF:
• 1 customizable blind box plenum
• 5 motorized spools with a diameter of Ø 160 mm

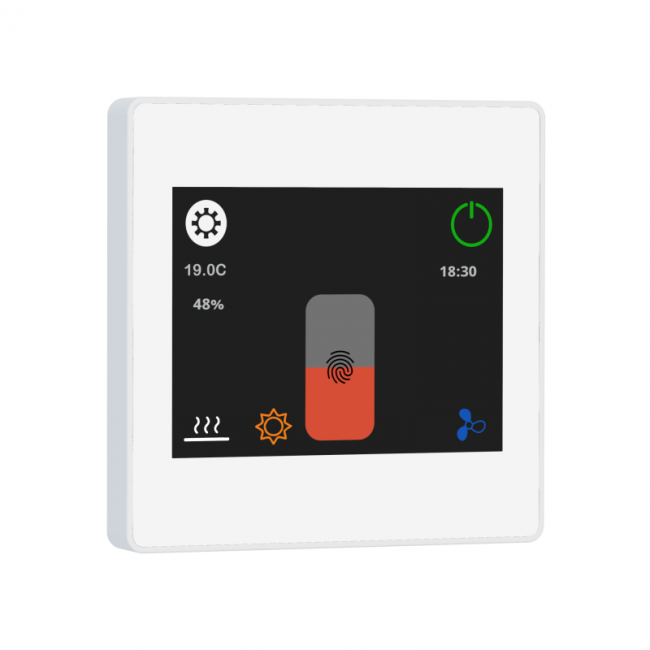

• 5 white touchscreen thermostats

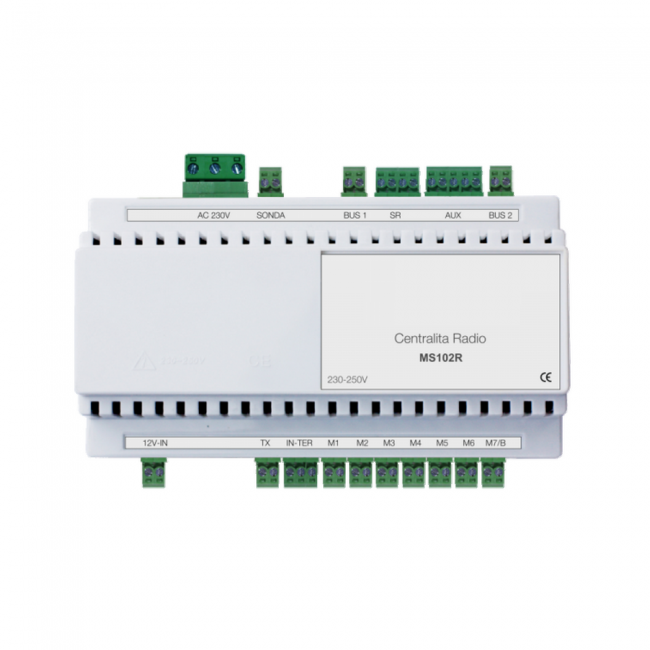

• 1 Control module from 2 to 7 zones

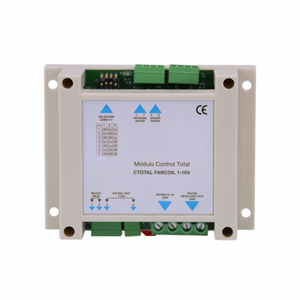

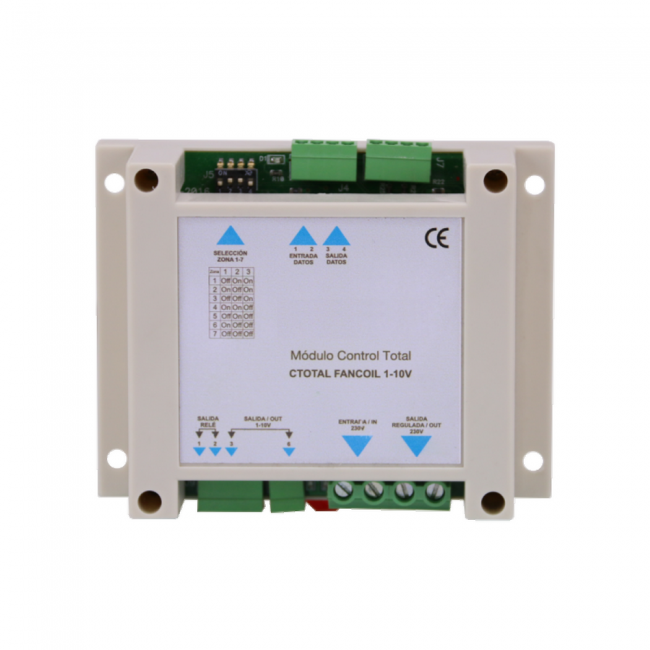

• 1 Control module dedicated to the machine
Delivery time of approximately 10/15 working days from order confirmation
Product code: CZ5Z.160.ARTE.W
