DUCT ZONES - 6 ZONES Ø 160 mm
MOTORIZED PLENUM FOR ZONED AIR DISTRIBUTION
span>
Channel.Zone by 3S®
FEATURES:
New targeted air distribution system by 3S dedicated to Gree by Argo ducted air conditioning systems
(compatible with all the best brands upon request).

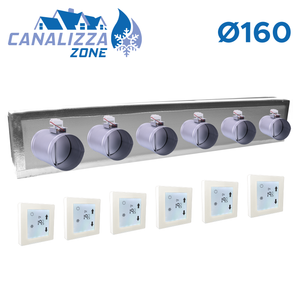

The Canalizza.Zone motorized plenum by 3S® is configurable with a minimum of 2 connections and a maximum of 7 (from 2 to 7 separately controllable zones) for rigid or flexible pipes Ø 160 mm.
The motorized dampers - controlled by wireless touch screen room thermostats - installed directly on the plenum, allow targeted cooling/heating only of "occupied" areas, creating significant temperature differentials between different environments, thus avoiding unnecessary energy waste.
Optimal solution for shops, offices, and homes, it allows for enormous reductions in system management costs, and reduces the size of the machines to be installed.

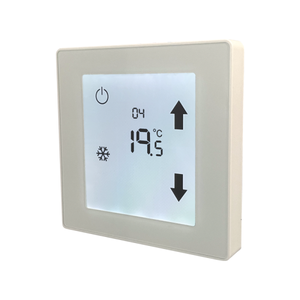

The touch screen room thermostats are available in white, and in the brand new Wi-Fi version (remote control of the entire system manageable via App from smartphone or tablet). *On request.
The advantage of a system that can be managed zone by zone like the classic multi-split, with the elegance and refinement of the ducted system.
CONSISTS OF:
• 1 Customizable blind box plenum
• 6 Motorized spigots Ø 160 mm
• 6 White touch screen thermostats

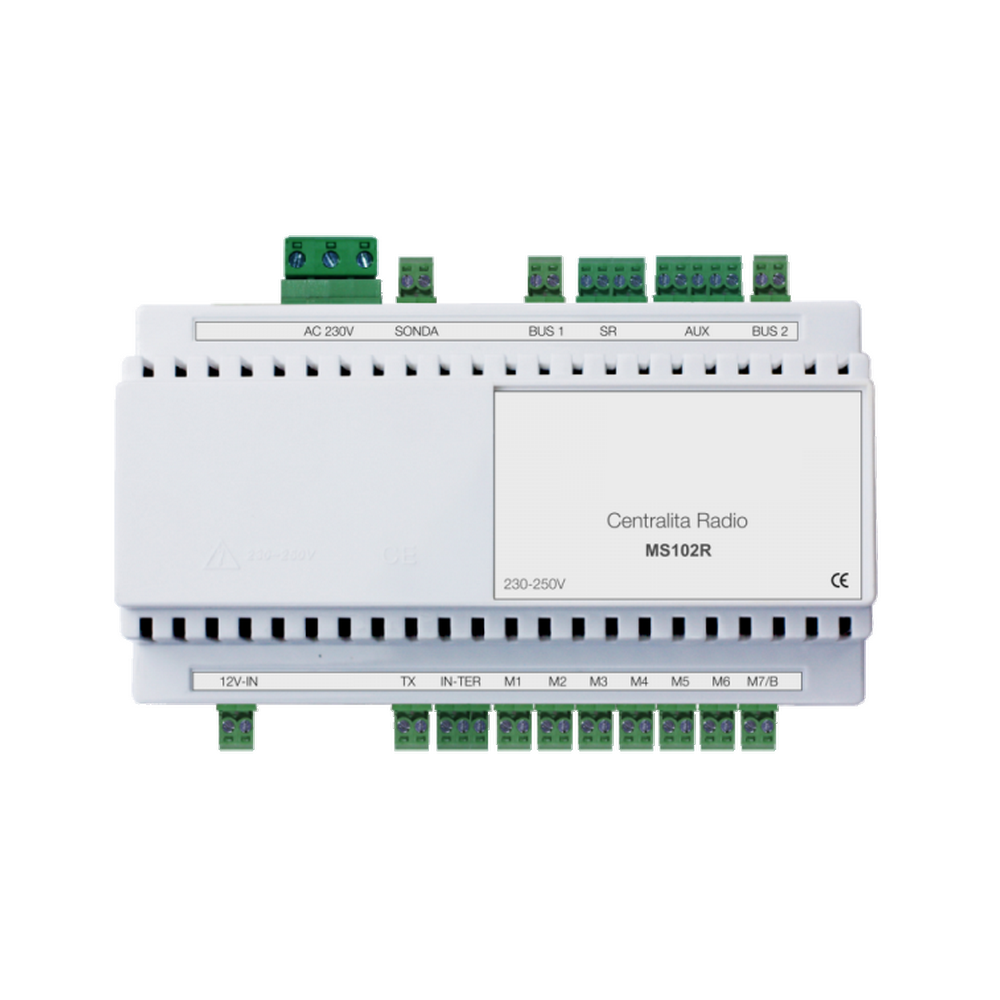

• 1 Control module from 2 to 7 zones

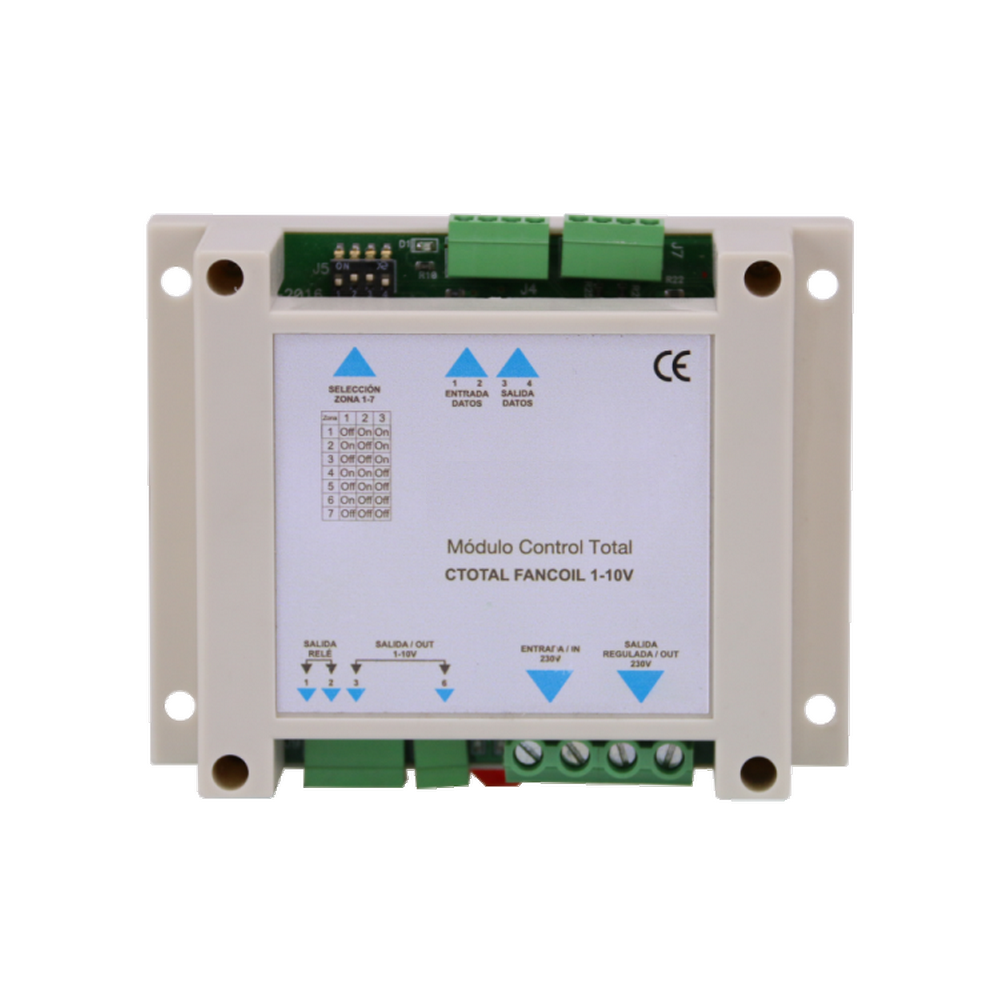

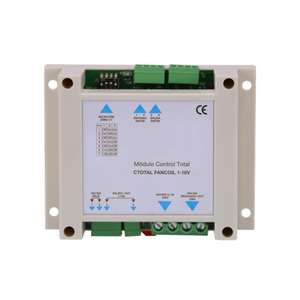

• 1 Control module dedicated to the machine
Delivery time approx 10/15 working days from order confirmation
Product code: CZ6Z.160.ROMA
