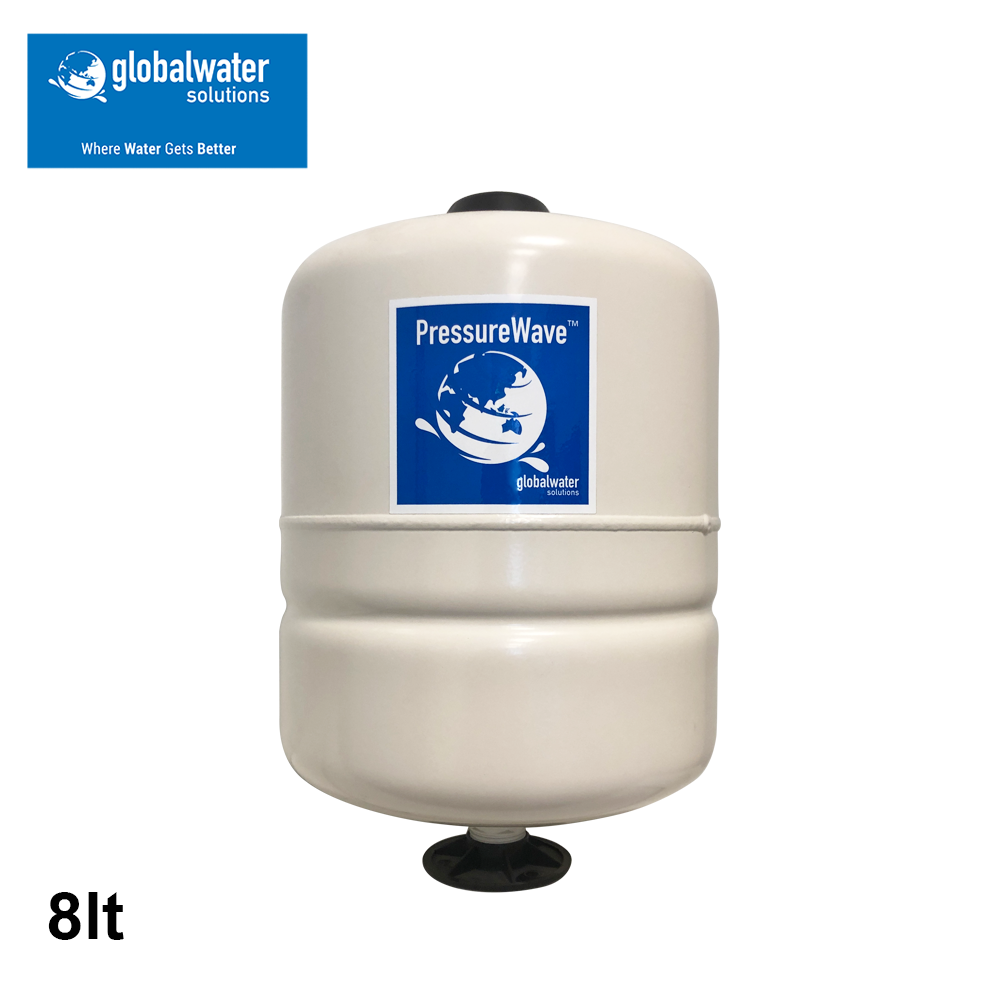

EXPANSION TANK - PWB-8LX
WITH FIXED DIAPHRAGM FOR HOT WATER PUMPS and HEATING
DESCRIPTION:
< span style='letter-spacing: normal;'>8 LITER EXPANSION TANK ATT. 3/4" WITH FIXED MEMBRANE
The < /span>PressureWave ™ PWB-8LX Tank are ideal for a wide range of applications, including pressurization systems, artesian wells, irrigation systems, constant pressure systems, variable frequency electronic systems, thermal expansion, anti-water hammer.< /span>< /span>
The series < /span>< span style='font-style: normal;'>PressureWave ™PWB-8LX is Made with an original polypropylene liner combined with a high quality butyl diaphragm. approved by FDA (Food and Drug Administration) with a unique diaphragm design; this is pressed against the tank walls by a steel closing ring. The hermetic dust cover protecting the precharge valve prevents air leaks.
Water enters the tank via a patented stainless steel hydraulic fitting.
All internal parts, including the air valve, are rounded to prevent diaphragm perforation.
Externally, the two-component almond-colored polyurethane paint applied over an epoxy primer guarantees high resistance to atmospheric agents and durability over time.
The < /span>PressureWave ™ Tanks are subjected to quality tests in addition phases, during the production process, to ensure the structural integrity of each tank.
The < /span>PressureWave ™ Tanks represent, to date, the best quality superior and versatile pressure vessels, suitable for a wide range of applications, they do not require any maintenance
< strong>TECHNICAL CHARACTERISTICS:
Precharge in the container: 1.9 bar / 28 psi
Maximum operating pressure: 10 bar / 150 psi
Maximum liquid temperature: 90 °C / 194 °F
< strong>DIMENSIONS:
Height: 316 mm - Width 202 mm - Weight 2.47 kg
Product code: PWB-8LX-C0.75
