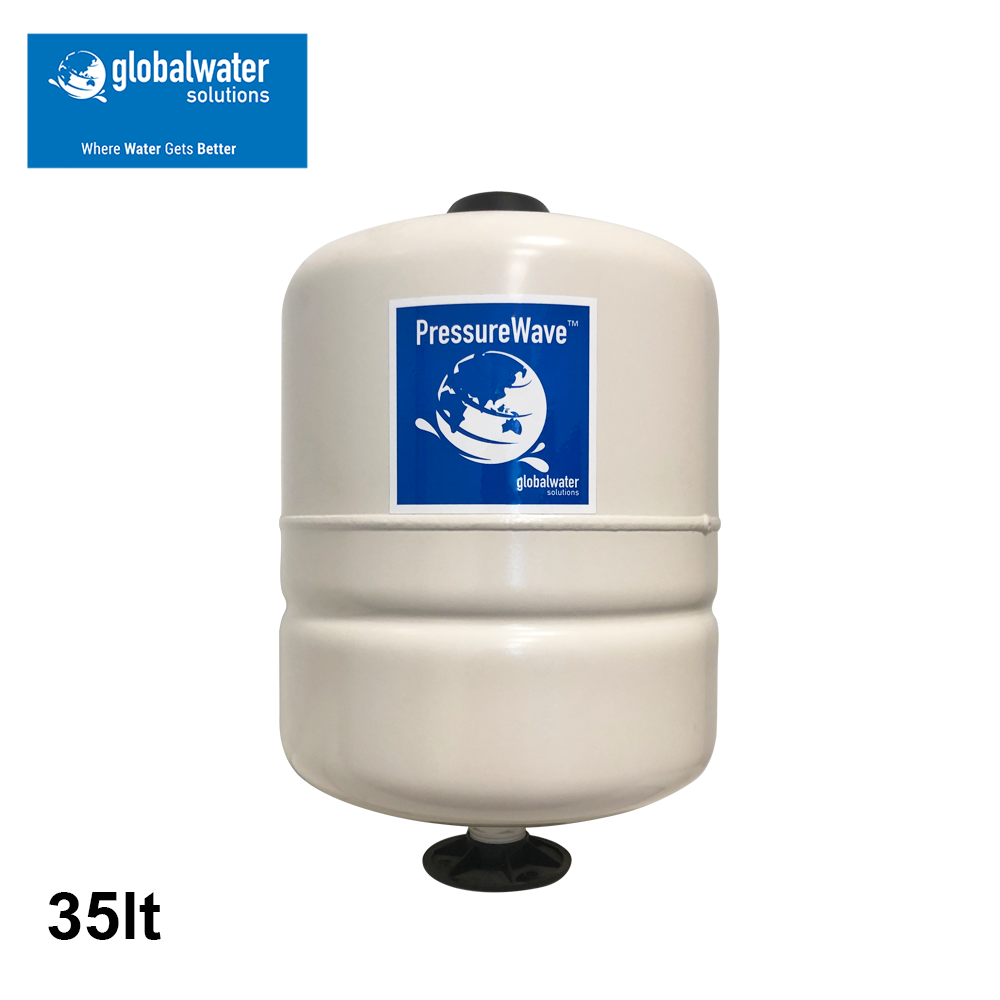

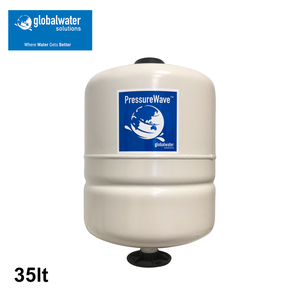

EXPANSION TANK - PWB-35LX
WITH FIXED DIAPHRAGM FOR HOT WATER PUMPS and HEATING
DESCRIPTION:
< span style='letter-spacing: normal;'>35 LITER EXPANSION VESSEL ATT. 1" W/FIXED MEMBRANE
• Single diaphragm design
• NSF Standard 61, CE/PED, WRAS, ACS, ISO: 9001, Gost,Evraz Approved Certified
• Patented stainless steel hydraulic connection
• Original polypropylene liner
• Two-component polyurethane paint applied to an epoxy primer
• Does not leak air, hermetic dust cover to protect the precharge valve
• Individually tested multiple times during the production process.
• It does not require maintenance.
PressureWave™ expansion tanks are ideal for a wide range of applications such as pressurization systems, thermal expansion, irrigation systems and water hammer protection.< span style='font-variant: normal;'>
The water chamber of the PressureWave™ series is made of a virgin polypropylene liner coupled with a high-butyl content diaphragm (FDA certified). The diaphragm is fixed to the tank structure by a steel ring.
The brass air valve, closed by a sealed threaded cap, prevents any pressure loss. Water enters the tank through a patented connection (equipped with a hexagon for screwing and unscrewing) made of stainless steel.
Both the polypropylene casing and diaphragm are reinforced in specific wear areas for superior durability. All internal parts, including the choke, are rounded to prevent damage to the diaphragm under extreme usage conditions. The special water connection ensures a double water/air seal ensuring
no leaks and maintaining tank pressure.
Externally, the vessel is covered with an almond-colored two-component polyurethane paint applied over an epoxy base which allows for hundreds of hours of exposure to salt spray and high UV protection.
PressureWave™ vessels are subjected to numerous quality tests throughout the manufacturing process to ensure the product's integrity. structural structure of each individual specimen.
< strong>TECHNICAL CHARACTERISTICS:
Precharge in the container: 1.9 bar / 28 psi
Maximum operating pressure: 10 bar / 150 psi
Maximum liquid temperature: 90 °C / 194 °F
< strong>DIMENSIONS:
Height: 481 mm - Width 318 mm - Weight 7.28 kg
Product code: PWB-35LX
