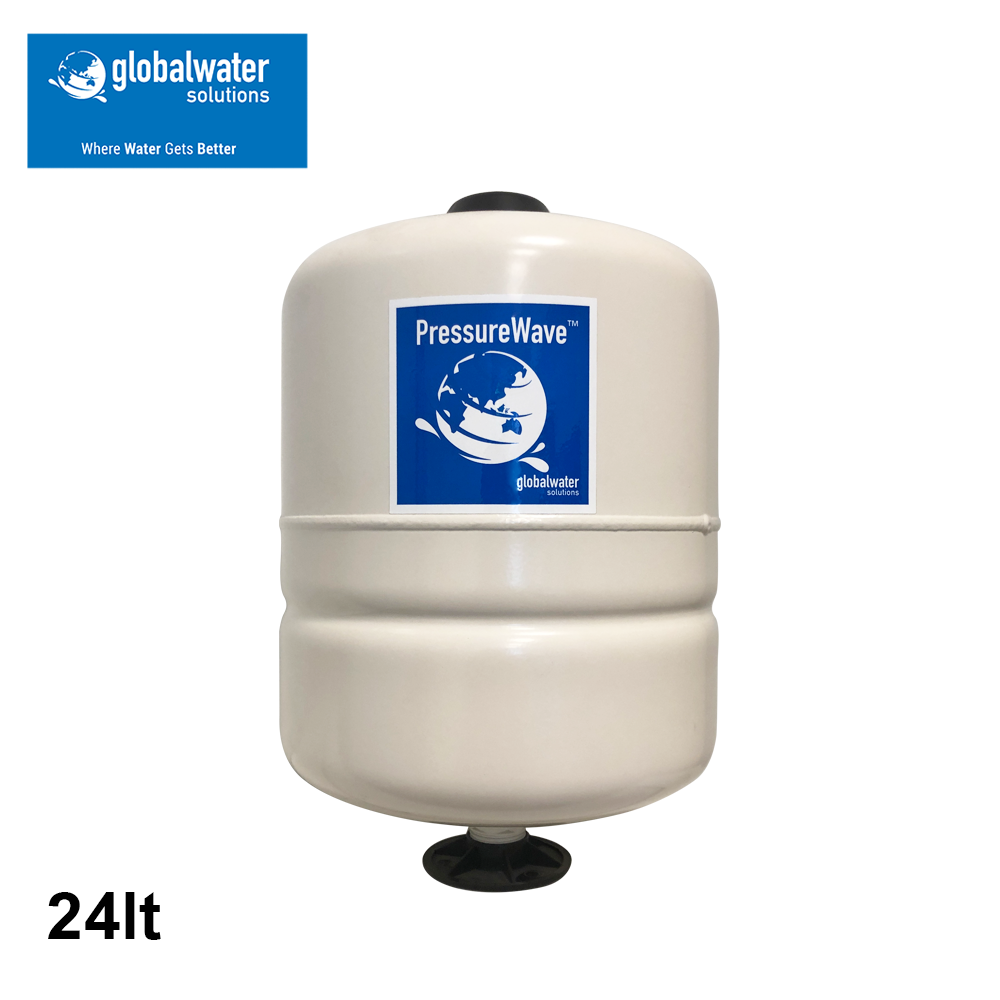

EXPANSION TANK - PEB-24LX
WITH FIXED DIAPHRAGM FOR HOT WATER PUMPS and HEATING
DESCRIPTION:
< span style='letter-spacing: normal;'>EXPANSION VESSEL 24 LITERS ATT. 1" WITH FIXED MEMBRANE
The < /span>PressureWave ™ PWB-24LX tank are ideal for a wide range of applications, including pressurization systems, artesian wells, irrigation systems, constant pressure systems, variable frequency electronic systems, thermal expansion, anti-water hammer.< /span>< /span>
The series < /span>< span style='font-style: normal;'>PressureWave ™PWB-24LX is Made with an original polypropylene liner combined with a high quality butyl diaphragm. approved by FDA (Food and Drug Administration) with a unique diaphragm design; this is pressed against the tank walls by a steel closing ring. The hermetic dust cover protecting the preload valve prevents air leaks.
Water enters the tank through a patented stainless steel hydraulic fitting.
All internal parts, including the air valve, are rounded to prevent perforation of the diaphragm.
Externally, the almond-colored two-component polyurethane paint applied over an epoxy primer guarantees high resistance to atmospheric agents and durability over time.
The < /span>PressureWave ™ Tanks are subjected to quality tests in further phases, during the production process, to guarantee the structural integrity of each tank.
The < /span>PressureWave ™ Tanks represent, to date, the best quality superior and versatile pressure vessels, suitable for a wide range of applications, they require no maintenance
< strong>TECHNICAL FEATURES:
Pre-charge in the vessel: 1.9 bar / 28 psi
Maximum operating pressure: 10 bar / 150 psi
Maximum liquid temperature: 90°C / 194°F
< strong>DIMENSIONS:
Height: 444 mm - Width 290 mm - Weight 4.1 kg
Product code: PEB-24LX
