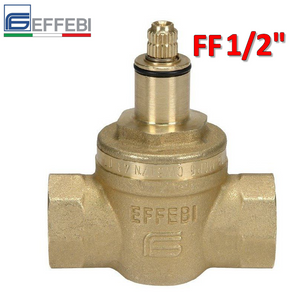

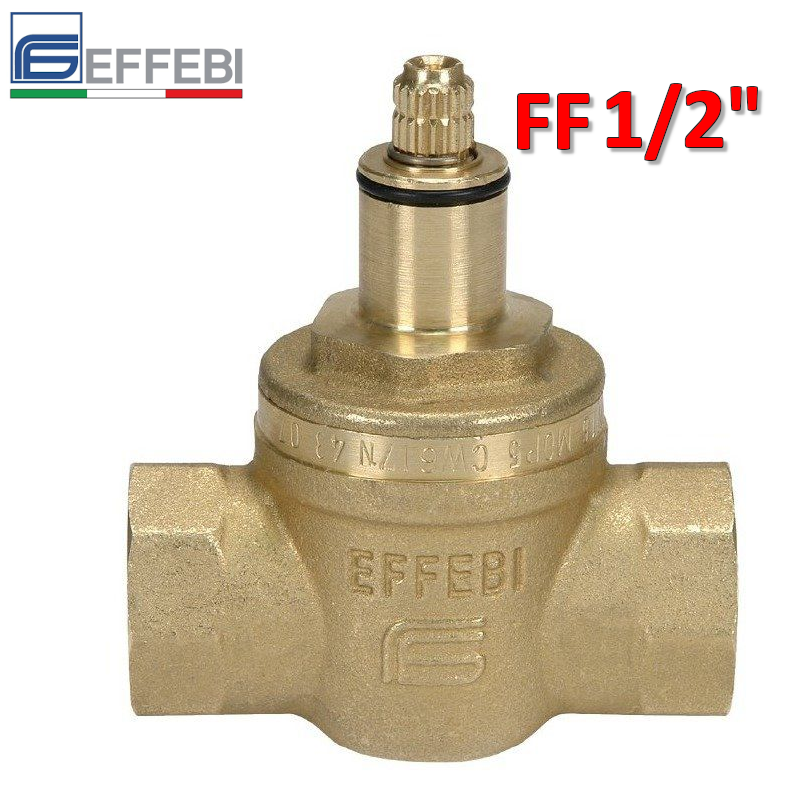

EXTRACTABLE VALVE - INCAS EXTRA
FEMALE FEMALE 1/2″ - TEFLON BALL
DESCRIPTION:
• The INCAS EXTRA full bore valve has been designed to allow the possibility of replacing one or more sealing components if necessary, without changing the valve body.
• The INCAS EXTRA full bore valve is equipped with the patented TOP-ENTRY maintenance system, which allows easy replacement of the seals without replacing the valve body.
• The special and patented shape of the body-sphere allows water recirculation, thus avoiding stagnation and therefore the possible formation of bacteria.
• Extension kits are available to increase the distance between the valve and the accessories by multiples of 15 mm (K250).
• The valve with anti-limescale ball surface treatment is available for installations with very hard water.
Fields of use:
The INCAS EXTRA valve is used for recessed installation in sanitary and heating systems.
Threaded end:
Female standard according to UNI ISO 7/1 (UNI EN 10226) standards.
Operating mechanisms:
Knob with rosette (K210) with extension, lever with rosette (K200) with extension, closed cap with operating key (K204), 15 mm extension (K250).
The flow direction is also detectable by the marking on the control rod.
All valves comply with Directive 97/23/CE and are 100% tested with an electronically controlled pneumatic sealing test.
TEMPERATURE LIMITS
-15°C to +110°C
PRESSURE LIMITS
PN16 (20°C)
Product code: 1680G204
