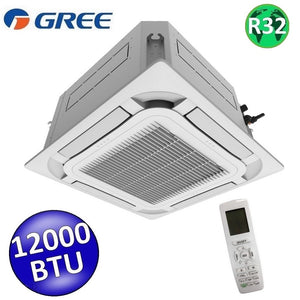

GREE - INTERNAL CASSETTE UNIT 12,000 BTU for MULTI SPLIT
COMPLETE WITH TF05 GRILLE AND REMOTE CONTROL
operates with new R32 refrigerant gas, very high efficiency class
Model:
Series: Built-in cassette operating with R32 refrigerant gas
Unit model: GKH(12)EB-K6DNA5A/I (GREE10188)
Complete with TF05 cover grille (TL10000230)
Power: 12,000 btu
Integrated condensate drain pump
Performance:
Cooling electrical output (kW): 3.5
Heating output power (kW): 4.0
I.U. air flow (sa.-a.-m.-b.) m³/h: 560/540/490/450/420/380/350
Fan speed: 7+auto
Dehumidification: 1.8 Lt/h
Sound pressure (dB(A)): max 41 - min 28
Sound power (dB(A)): max 57 - min 44
Features:</span >
Liquid/gas pipe diameter (inches): 1/4" (6.35 mm) - 3/8" (9.52 mm)
Unit dimensions HxWxD (mm): 265x570x570
Weight 17 Kg unpacked
Panel/grille size HxWxD (mm): 47.5x620x620
Panel/grille weight 3 kg unpacked
Match with outdoor units:
DUAL: GWHD(14)NK6OO and GWHD(18)NK6OO
TRIAL: GWHD(21)NK6OO and GWHD(24)NK6OO
QUADS: GWHD(28)NK6OO and GWHD(36)NK6LO
PENTA: GWHD(42)NK6LO
GREE by Argo
Product code: GREE10188+TF05
