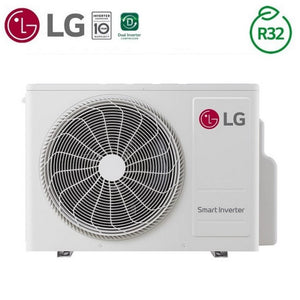

• Multi-split system outdoor unit
• Outdoor unit model: MU2R15.U13

Energy efficiency:

• Seasonal efficiency:
  • SEER: 8.60
  • SCOP (average/warmer/colder climate): 4.61
• Energy efficiency class (cooling): A+++
• Energy efficiency class (heating): A++

Performance:

• Cooling capacity min - nom - max (kW): 0.88 ~ 4.10 ~ 4.72
• Heating capacity min - nom - max (kW): 0.97 ~ 4.69 ~ 5.39
• Connectable to 2 indoor units with a maximum power of 6.0 kW
• The unit must operate with at least 2 connected indoor units
• Sound pressure level (dB(A)): 45/48
• Power consumption for cooling min - nom - max kW: 0.23 ~ 0.99 ~ 1.39
• Power consumption for heating min - nom - max kW: 0.24 ~ 1.07 ~ 1.46

Electrical data:

• Power supply (V/Hz/Φ): 230/50/1

Features:

• Refrigerant: R32 - 1.040 kg / 0.702 T.CO2 eq.
• Liquid/gas pipe diameter (inches): 1/4” (6.35 mm) - 3/8” (9.52 mm)
• Maximum pipe length with standard charge: 20 m
• Maximum pipe length with additional charge: 30 m
• Maximum elevation difference (outdoor unit above): 15 m
• Operating ranges (outdoor temperature): cooling from -10°C to +46°C / heating from -15°C to +24°C

Dimensions and weight:

• Dimensions (WxHxD) mm: 770x545x288; 32.5 kg without packaging

The product code is: MU2R15.U12
