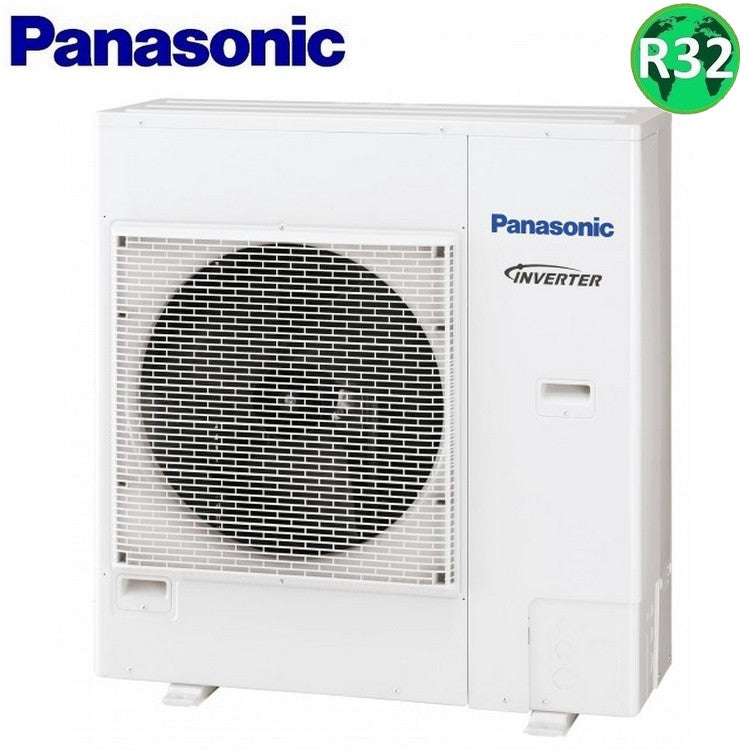

Panasonic CU-4Z80TBE - MULTI-SPLIT OUTDOOR UNIT

for quad-split - connectable to 4 indoor units - R32 A++/A++

Model:

• Free Multi Z System
• Outdoor unit model: CU-4Z80TBE

Energy Efficiency:

• Seasonal efficiency: SEER: 7.90 SCOP (average/warmer/colder climate): 4.70
• Energy efficiency class (cooling): A++
• Energy efficiency class (heating): A++
• Seasonal energy consumption (average/warmer/colder climate) kWh/year: 990 – 2026

Performance:

• Cooling capacity (kW): 8.0 (3.0 - 9.2)
• Heating capacity (kW): 9.4 (4.2 - 10.6)
• Can be connected to 4 indoor units with a maximum power of 14.70 kW
• The unit must operate with at least 2 indoor units connected
• Sound pressure (dB(A)): 51/52
• Power input for cooling kW: 1.98 (0.53 – 2.87)
• Power input for heating kW: 2.03 (0.70 – 3.06)

Electrical data:

• Power supply (V/Hz/Φ): 230/50/1

Features:

• Refrigerant: R32 - 2.72 kg / 1.836 T. CO2 eq.
• Liquid/gas pipe diameter (inches): 1/4” (6.35 mm) - 3/8” (9.52 mm)
• Maximum pipe length with standard charge: 3-45 m
• Maximum pipe length with additional charge: 70 m
• Maximum elevation difference (outdoor unit above): 15 m
• Operating limits (outdoor temperature): cooling from -10°C to +46°C / heating from -15°C to +24°C

Dimensions and weight:

• Outdoor unit HxWxD (mm): 999x940x340; 80 kg unpackaged

Product code: CU-4Z80TBE
