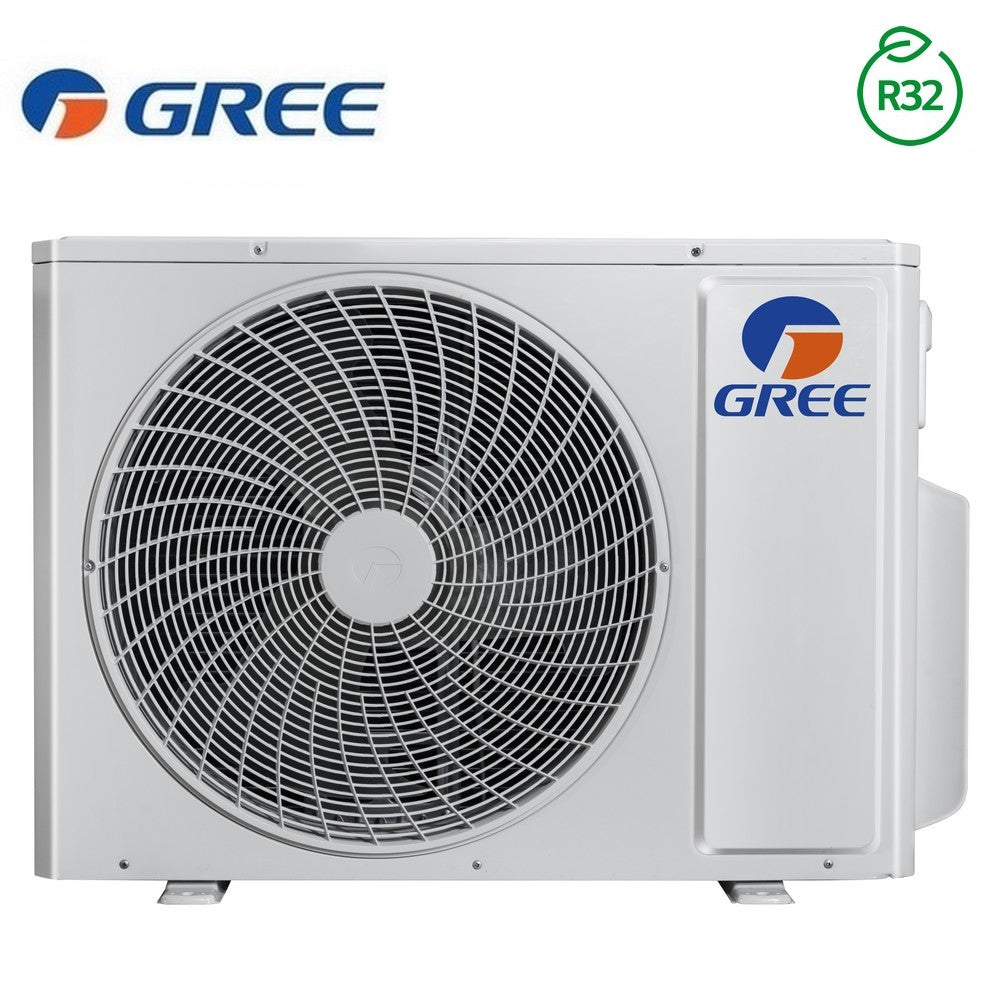

GREE GWHD(24)NK6OO - MULTI SPLIT OUTDOOR UNIT
for testing - combinable with 3 indoor units
new R32 refrigerant gas with very high efficiency class A++/A+
-
Type: heat pump
-
Power: 24,200 btu cooling / 29,300 btu heating
Energy efficiency:
-
Seasonal efficiency:
SEER: 6.1
SCOP (average/warmer/colder climate): 4.0 -
Energy efficiency class (cooling): A++
-
Energy efficiency class (heating): A+
-
Seasonal energy consumption (average/warmer/colder climate) kWh/year; 407 - 2189
Performance:
-
Cooling capacity (kW): 7.1 (2.30 - 9.2)
-
Heating capacity (kW): 8.6 (3.65 - 9.20)
-
Air flow m³/h: 3800
-
Sound pressure (dB(A): 57
-
Sound power (dB(A): 68
-
Absorbed heating power Kw: 2.23 (0.98 - 2.87)
Features:
-
Refrigerant gas: R32 - 1.7 Kg / 1.215 T.Co2 eq.
-
Liquid/gas pipe diameter (inches): 1/4" (6.35 mm) - 3/8" (9.52 mm)
-
Maximum pipe length with standard charge. m 3-30
- Maximum pipe length with supplement: m 60
-
Maximum height difference: m 15
-
Operating limits (outdoor temperature): cooling from -15°c to +43°c / heating from -15°c to +24°c
Size and weight:
-
External Unit HxWxD (mm): 654x889x340; 47.5 Kg unpackaged
GREE by Argo
