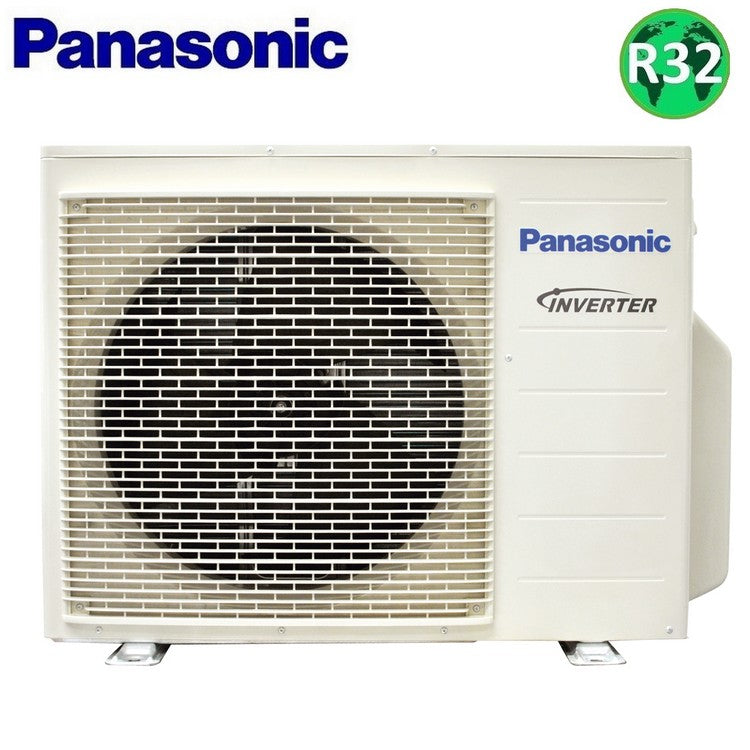

Panasonic CU-3Z52TBE - MULTI SPLIT OUTDOOR UNIT
for triple connection - compatible with 3 indoor units - R32 A+++/A+
for triple connection - compatible with 3 indoor units - R32 A+++/A+
Model:
- Free Multi Z system outdoor unit
- Outdoor unit model: CU-3Z52TBE
Energy Efficiency:
- Seasonal efficiency:
- SEER: 8.50
- SCOP (average/warmer/colder climate): 4.20
- Energy efficiency class (Cooling): A+++
- Energy efficiency class (Heating): A+
- Seasonal energy consumption (average/warmer/colder climate) kWh/year: 214 – 1667
Performance:
- Cooling capacity (kW): 5.2 (1.8 - 7.3)
- Heating capacity (kW): 6.8 (1.6 - 8.3)
- Connectable to up to 3 indoor units with a maximum power of 9.50 kW
- The unit must operate with at least 2 indoor units connected
- Sound pressure (dB(A)): 47/48
- Power input for cooling kW: 1.09 (0.36 – 2.18)
- Power input for heating kW: 1.47 (0.32 – 2.17)
Electrical Data:
Power supply (V/Hz/Φ): 230/50/1
Features:
- Refrigerant gas: R32 - 2.10 kg / 1.418 T.CO2 eq.
- Liquid / gas pipe diameter (inches): 1/4” (6.35 mm) - 3/8” (9.52 mm)
- Maximum pipe length with standard charge: 3-30 m
- Maximum pipe length with additional charge: 50 m
- Maximum height difference (outdoor unit above): 15 m
- Operating limits (outdoor temperature): cooling from -10°C to +46°C / heating from -15°C to +24°C
Dimensions and Weight:
- Outdoor unit HxWxD (mm): 795x875x320; 71 kg unpackaged
Product code: CU-3Z52TBE
