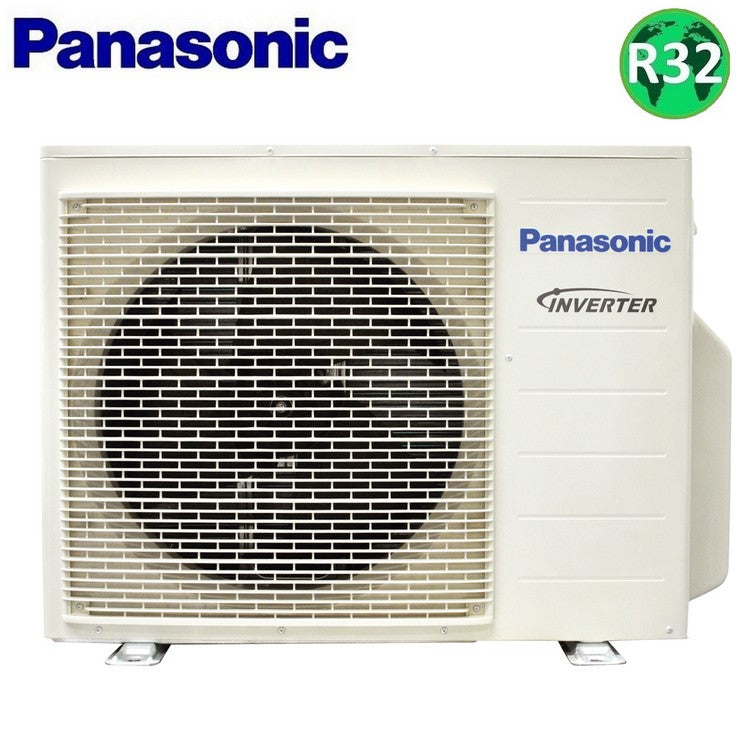

Panasonic CU-3Z68TBE - MULTI-SPLIT OUTDOOR UNIT for triple - can be combined with 3 indoor units - R32 A+++/A++

Model:

• Free Multi Z system outdoor unit
• Outdoor unit model: CU-3Z68TBE

Energy Efficiency:

• Seasonal efficiency:
• SEER: 8.00
• SCOP (average/warmer/colder climate): 4.20
• Energy efficiency class (cooling): A++
• Energy efficiency class (heating): A+
• Seasonal energy consumption (average/warmer/colder climate) kWh/year: 298 – 1733

Performance:

• Cooling capacity (kW): 6.8 (1.9 - 8.0)
• Heating capacity (kW): 8.5 (3.3 - 10.4)
• Can be connected to up to 3 indoor units with a maximum power of 11.20 kW
• The unit must operate with at least 2 connected indoor units
• Sound pressure (dB(A)): 51/52
• Power input cooling kW: 1.86 (0.27 – 2.37)
• Power input heating kW: 2.15 (0.62 – 2.86)

Electrical data:
Power supply (V/Hz/Φ): 230/50/1

Features:

• Refrigerant: R32 - 2.10 Kg / 1.418 T.Co2 eq.
• Liquid/gas pipe diameter (inches): 1/4” (6.35mm) - 3/8” (9.52mm)
• Maximum pipe length with standard charge. m 3-30
• Maximum pipe length with additional charge: m 60
• Maximum elevation difference (outdoor unit above) m 15
• Operating limits (outdoor temperature): cooling from -10°C to +46°C / heating from -15°C to +24°C

Dimensions and weight:
Outdoor Unit HxWxD(mm): 795x875x320; 71 Kg unpackaged

Product code: CU-3Z68TBE
