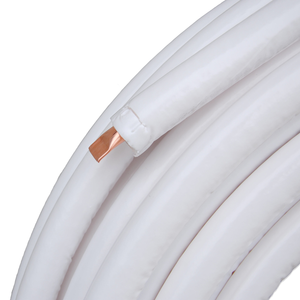

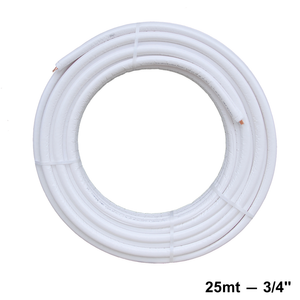

Copper coil 25 m Ø 3/4'' - 19.05 mm
for air conditioning and refrigeration systems
SUITABLE FOR GAS R32 - R410A - R407C - R22...
Copper tube characteristics:
Annealed ACR copper (R220), mechanical characteristics, dimensions, tolerances and eccentricity compliant with UNI EN 12735-1 standard.
Can be used with refrigerants R32, R407C and R410A, with internal cleaning and dehumidification using an inert gas with a maximum total residue of 0.034 g/m² and sealed ends according to ASTM B280.
Insulation:
Closed-cell cross-linked polyethylene foam with the following technical values:
• Thermal conductivity at 40°C λ ≤ 0.040 W/m*K
• Water vapor diffusion resistance factor (anti-condensation) μ ≥ 10000
• Fire reaction class 1
• Operating temperature -80°/+120°C
• Does not contain CFCs
External film of extruded polyethylene (LDPE), white color, flame retardant additive, adhering to the foam to ensure high anti-condensation properties, excellent resistance to abrasion and tearing.
Technical specifications:
- Alloy: Copper min. CU-DHP 99.9
- Standard EN 12735-1
- Tube diameter: 3/4'' - 19.05 mm
- Tube thickness: 1 millimeter
- Coil length: 50 meters
Insulation:
- Material: polyethylene foam (LDPE)
- Insulation thickness: 10 mm
- Color: White
- Self-extinguishing: class 1
Product code: CI.TR3/4
