SINGLE-WALL STAINLESS STEEL PIPE
< span style='font-size: 12pt; color: #ff0000;'>FEATURES
Category: CHIMNEY

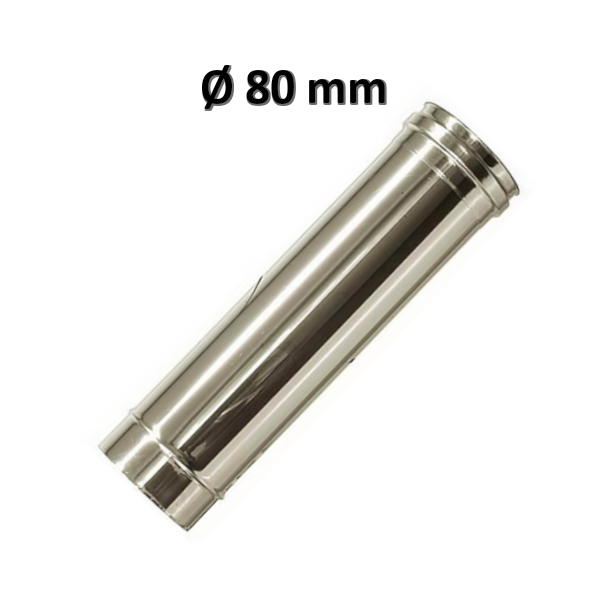

Stainless steel pipe 0.25 m Dn 80. Flue pipe in 316 stainless steel, single wall.
Element that constitutes the chimney or smoke duct (horizontal).
Chimney element in 316 stainless steel 0.5 mm thick. The TIG welding without added material guarantees high resistance to corrosion produced by acid condensation and ease of maintenance. The connection between the various elements is made via a male/female socket joint. CE certified system compliant with EN1856-2:2009. Resists operating temperatures up to 600°C in negative pressure (n1) without a gasket, and 200° in positive pressure (p1) with the aid of the appropriate included silicone gasket, which guarantees the joints perfect sealing against gas and condensation. It is also compliant with the UNI/TS 11278:2008 installation standard.
Designation with gasket: EN 1856-2 - T200 - P1 - W - V2 - L50040 - 0
Designation without seal: EN 1856-2 - T600 - N1 - D– V2 - L50040 - G600
Product code: TU25.80AC
