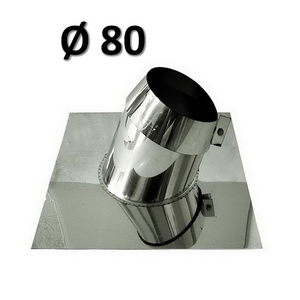

Sloping roof flashing
STAINLESS STEEL / LEAD Ø 80
DESCRIPTION:
Sloping roof flashing with a Dn 80 lead base. The flange is positioned on the roof and comes with flashing for roofs with a slope of 5° to 20°. The lead base adapts to uneven surfaces. The chimney element is made of 0.5 mm thick 316 stainless steel. TIG welding without added material ensures high resistance to corrosion produced by acid condensation and ease of maintenance. The connection between the various elements is made via a male/female socket joint. CE certified system compliant with EN1856-2:2009. Resistant to operating temperatures up to 600 °C in negative pressure (n1) without gasket, and 200° in positive pressure (p1) using the appropriate silicone gasket, available for separate purchase, which ensures a perfect seal against gas and condensation from the joints. It also complies with the UNI/TS 11278:2008 installation standard. Designation with seal: EN 1856-2 - T200 - P1 - W - V2 - L50040 - O Designation without seal: EN 1856-2 - T600 - N1 - D– V2 - L50040 - G600
Product code: SPFI20080P
