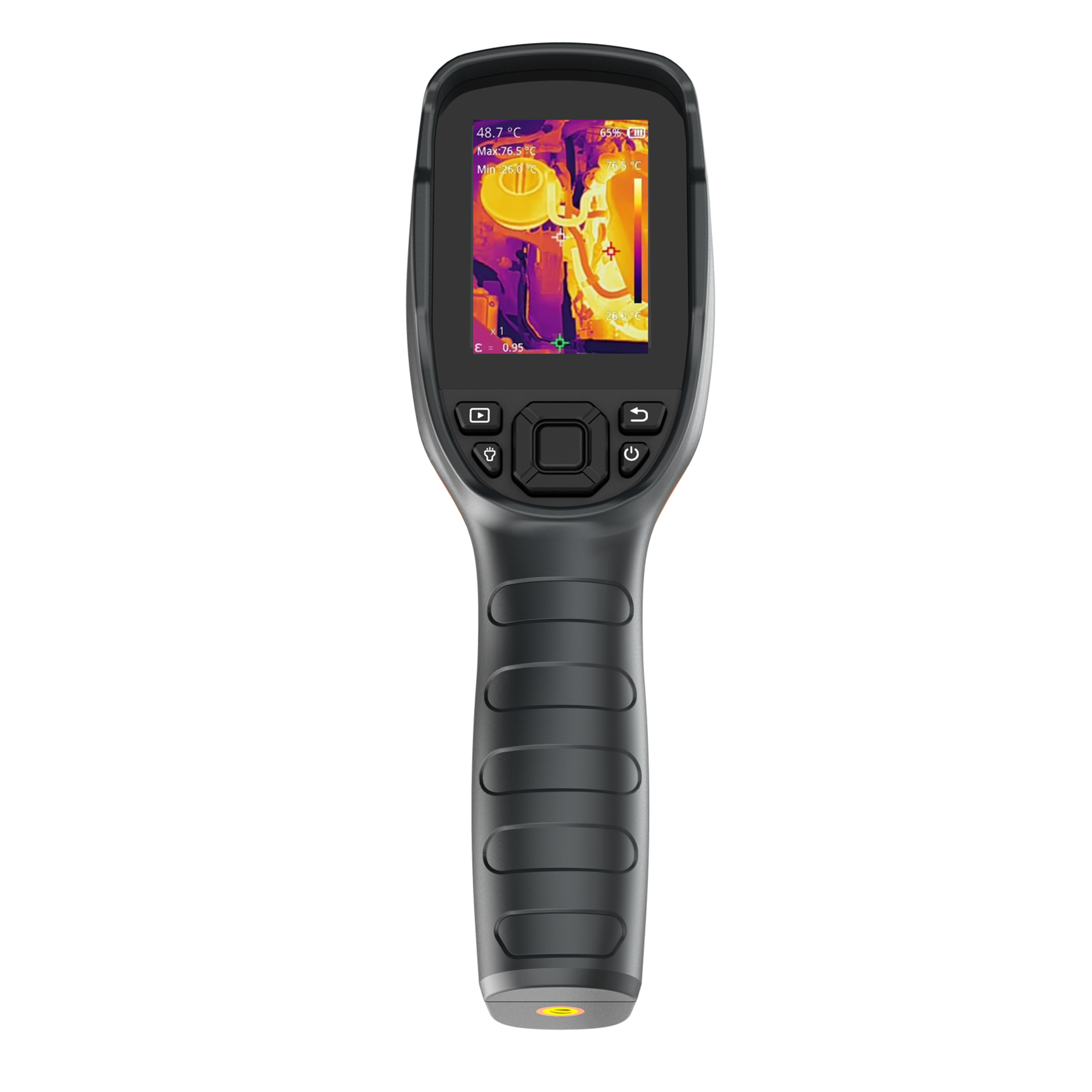

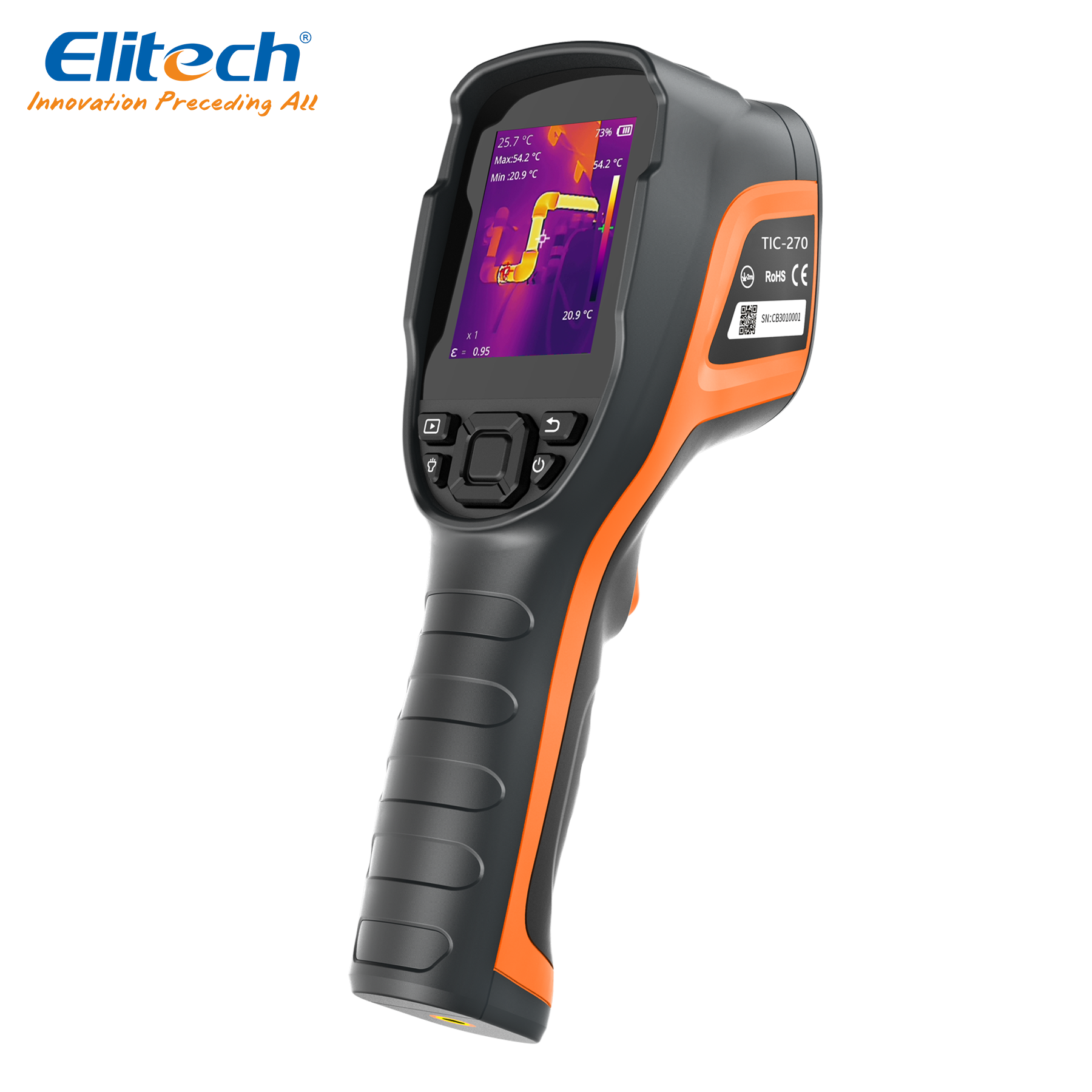

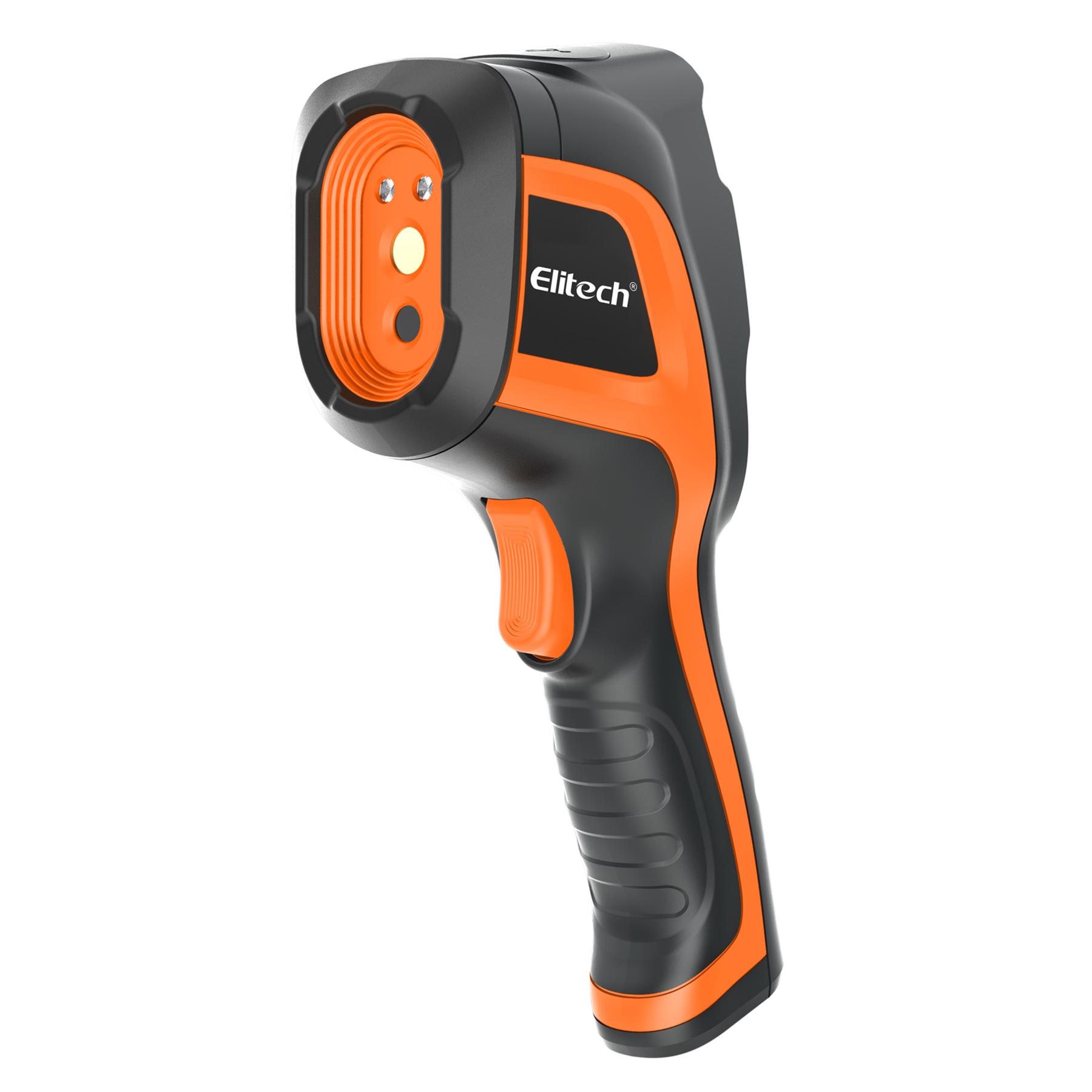

USB Digital Thermal Camera with LCD Screen, 256 x 192 Resolution, Elitech TIC-270

Description:

• Standard 256 x 192 infrared resolution, enhanced to 320 x 240 with super-resolution for a clearer image
• Smart image algorithm for accurate detail and sharp images
• High sensitivity (NETD ≤ 40mK) detects even the smallest temperature variations
• Built-in recording makes it easy to review later
• PC software automatically generates analysis reports

Features:

Thermography

Detector Type: 12 µm uncooled infrared detector
Infrared Resolution: 256 x 192
Frame Rate: 25 Hz
Lens Focal Length: 3.2 mm / 0.126 inch
Field of View: 56° x 42°
Instantaneous Field of View: 3.75 mrad
Focus Mode: Fixed focus
Minimum Focus Distance: 0.3 m / 11.81 inches
Measurement Range (three levels):

• Low Temperature: -20 °C to +150 °C / -4 °F to 302 °F
• High Temperature: 100 °C to 550 °C / 212 °F to 1022 °F
• Automatic: -20 °C to 550 °C / -4 °F to 1022 °F

Measurement Accuracy: ±2 °C or ±2% of readings, whichever is greater

Display

Screen: 2.8 inch, 320 x 240
Visible Light Camera: 2 megapixels
Digital Zoom: 1x, 2x, 4x
Palettes: White hot, Black hot, Iron, Lava, Rainbow, Rainbow HC, RdGy
Image Modes: IR, Fusion, PIP, Visible
Temperature Range Setting: Auto

Measurement and Analysis

Built-in Analysis Functions: Center temperature point/Max temperature point/Min temperature point
Support Software: PC (infrared analysis software)

System Functions

Alarm Type: Full-screen high/low temperature alarm; image pop-up display, flash alert; automatic image capture at alarm time (with temperature data)
Power Saving: Automatic shutdown

Other

Power Supply: Built-in rechargeable lithium-ion battery
Operating Time: Approximately 11 h
IP Rating: IP54
Dimensions: 237 × 75 × 92 mm / 9.33 × 2.95 × 3.62 inches
Weight: 520 g / 1.15 pounds

Product code: TIC-270
