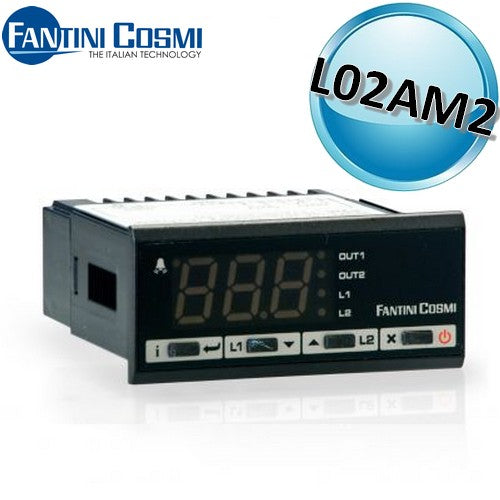

Proportional ON/OFF Thermostat

Fantini Cosmi L02AM2

2 outputs - complete with 1 probe

feed 115÷230Vac 50 Hz

Electrical features:

• Output 1 on single-pole changeover relay, output 2 on ON/OFF relay

• Contact rating: 12(4)A 240 Vac for output 1 and 7(2)A 240 Vac for output 2

• Consumption 3 VA

Regulations and approvals:

• EN60730-2-9, EN60730-1,

• EN55022 (Class B), EN50082-1

Features:

• Inputs: NTC 10k or PT 100 or thermocouple

• Configurable parameters:
  -cooling or heating function assigning a positive or negative sign to the differential or proportional band respectively
  -minimum or maximum set point limits
  -ON or OFF status of the output in case of faulty probe
  -minimum ON/OFF time of the output independent of the temperature value

• Operating temperature -10 ÷ 50°C

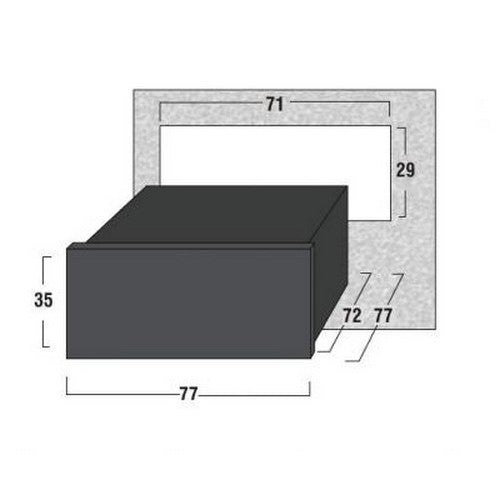

• Protection rating IP55 if correctly installed on the panel with sealing gasket

• Front ON/OFF button for simple and intuitive use

• Possibility to set a minimum and maximum alarm temperature and to change the status of output 2 by opening or closing the contact.

Product Code: L02AM2
