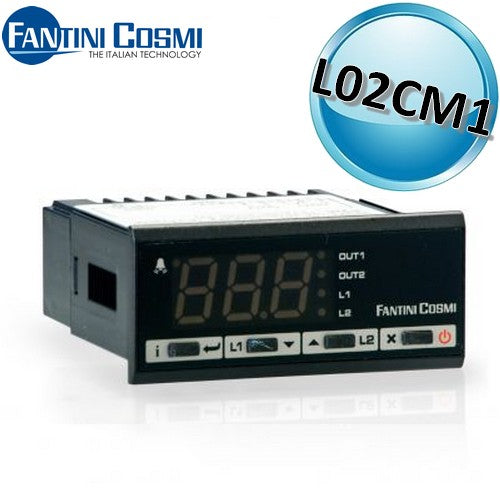

Proportional ON/OFF Thermostat

Fantini Cosmi L02CM1

1 output - probe not included

power 115÷230Vac 50 Hz

 Electrical Characteristics:

• Output 1 on single-pole relay in deviation

• Output contact range: 12(4)A 240 Vac.



• Consumption 3 VA< /p>

Regulations and Approvals:

• EN60730-2-9, EN60730-1,

• EN55022 (Class B), EN50082-1

Features:

• Inputs: NTC 10k or PT 100 or thermocouple

• Configurable parameters:
  -refrigeration or heating function by assigning a positive or negative sign to the differential or proportional band respectively
  -minimum or maximum setpoint limits
  -ON or OFF state of the output in case of faulty probe
  -minimum ON/OFF time of the output independent of temperature value

• Operating temperature -10 ÷ 50°C

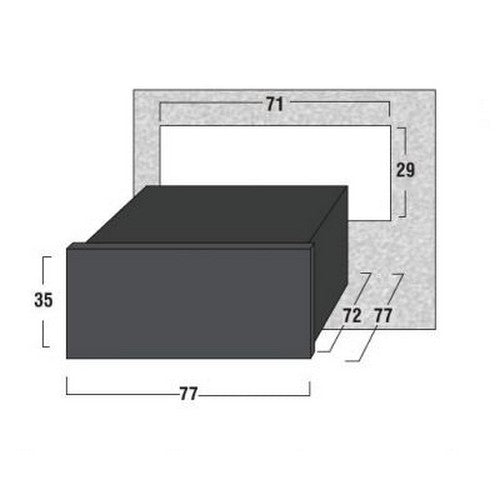

• IP55 protection rating if correctly installed on the panel with sealing gasket

• Front ON/OFF button for simple and intuitive use< / span>

 < span style='font-size: 12pt; line-height: 0.42cm;'>

Product code at: L02CM1
