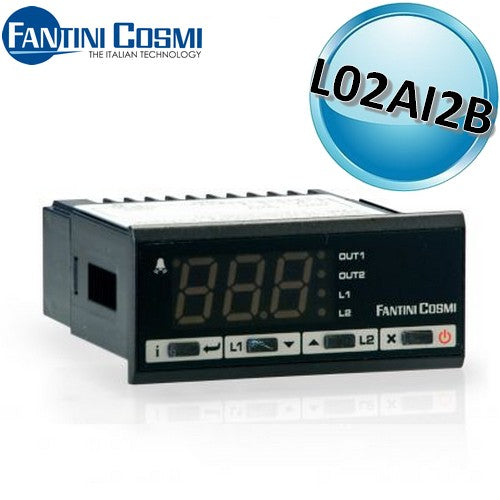

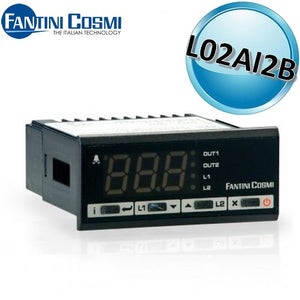

Proportional On/Off Thermostat

Fantini Cosmi L02AI2B

2 outputs - complete with 1 probe

Power supply 12 Vac/dc

Electrical characteristics:

• Output 1 on single-pole deviation relay, output 2 on ON/OFF relay

• Contact rating: 10A 24 Vac for output 1 and 1A 24 Vac for output 2

• Consumption 3 VA< /p>

Regulations and approvals:

• EN60730-2-9, EN60730-1,

• EN55022 (Class B), EN50082-1

Features:

• Inputs: NTC 10k or PT 100 or thermocouple

• Configurable parameters:
  -refrigeration or heating function assigning a positive or negative sign respectively to the differential or proportional band
  -minimum or maximum limits of the setpoint
  -ON or OFF state of the output in case of faulty probe
  -minimum ON/OFF time of the output independent of the temperature value

• Operating temperature -10 ÷ 50°C

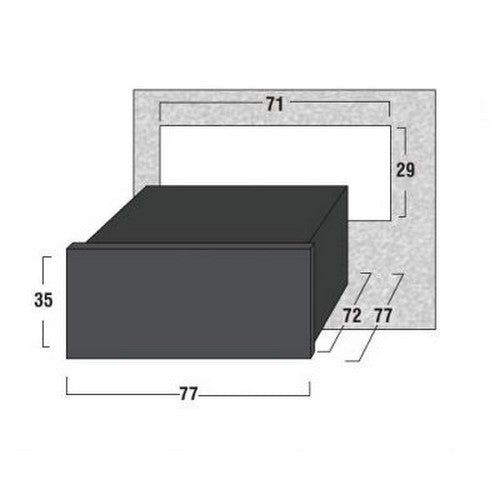

• Protection rating IP55 if correctly installed on the panel with sealing gasket

• Front ON/OFF button for simple and intuitive use< / span>

• Possibility to set a minimum and maximum alarm temperature and to change the state of output 2 by opening or closing the contact.

Product code to: L02AI2B
