Electronic chronothermostat head for Fantini and Cosmi radiators
DESCRIPTION

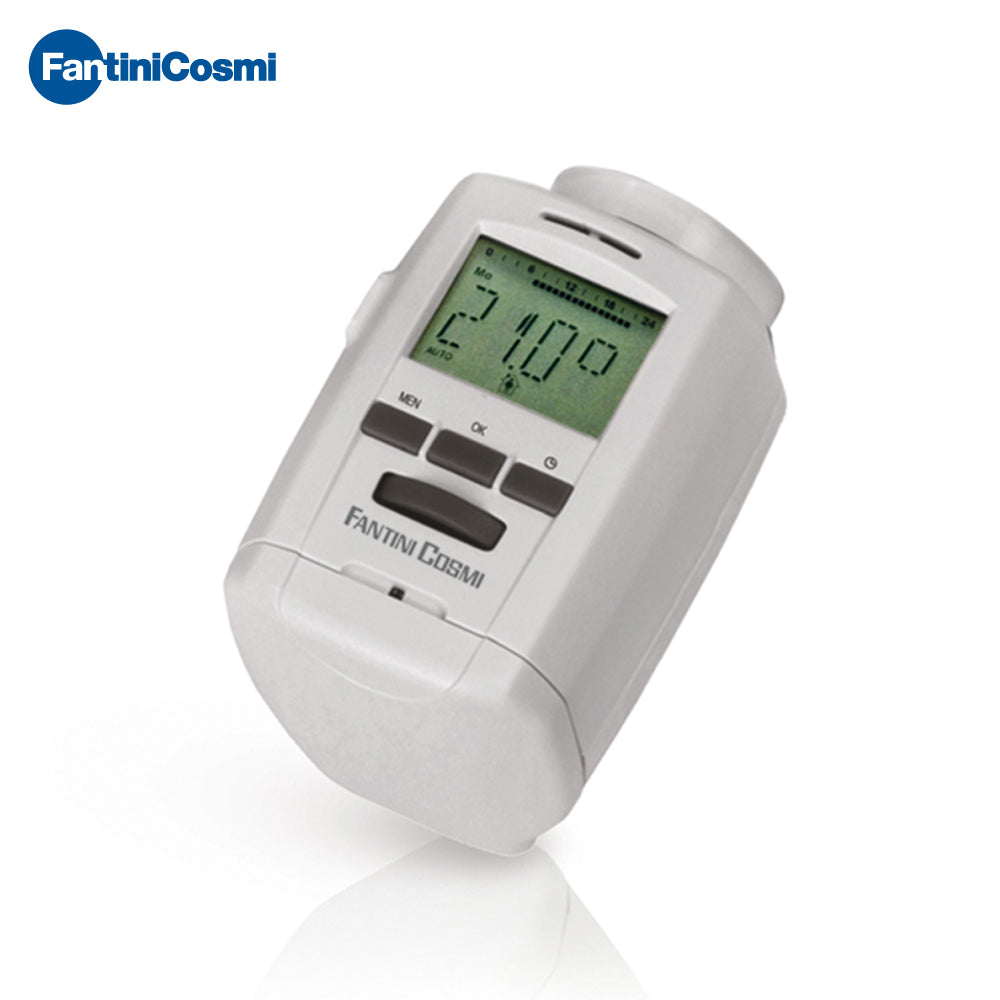

- The O62C electronic chronothermostat head is a technologically advanced, silent and compact device whose dimensions are no larger than a normal thermostatic head.
- The head snaps onto its ring with a standard M30x1.5 thread.
- The function keys, selection wheel, and an LCD screen allow for easy menu navigation, which enables programming and use of the various functions.
- To speed up installation phases, you can use the O63P programmer.

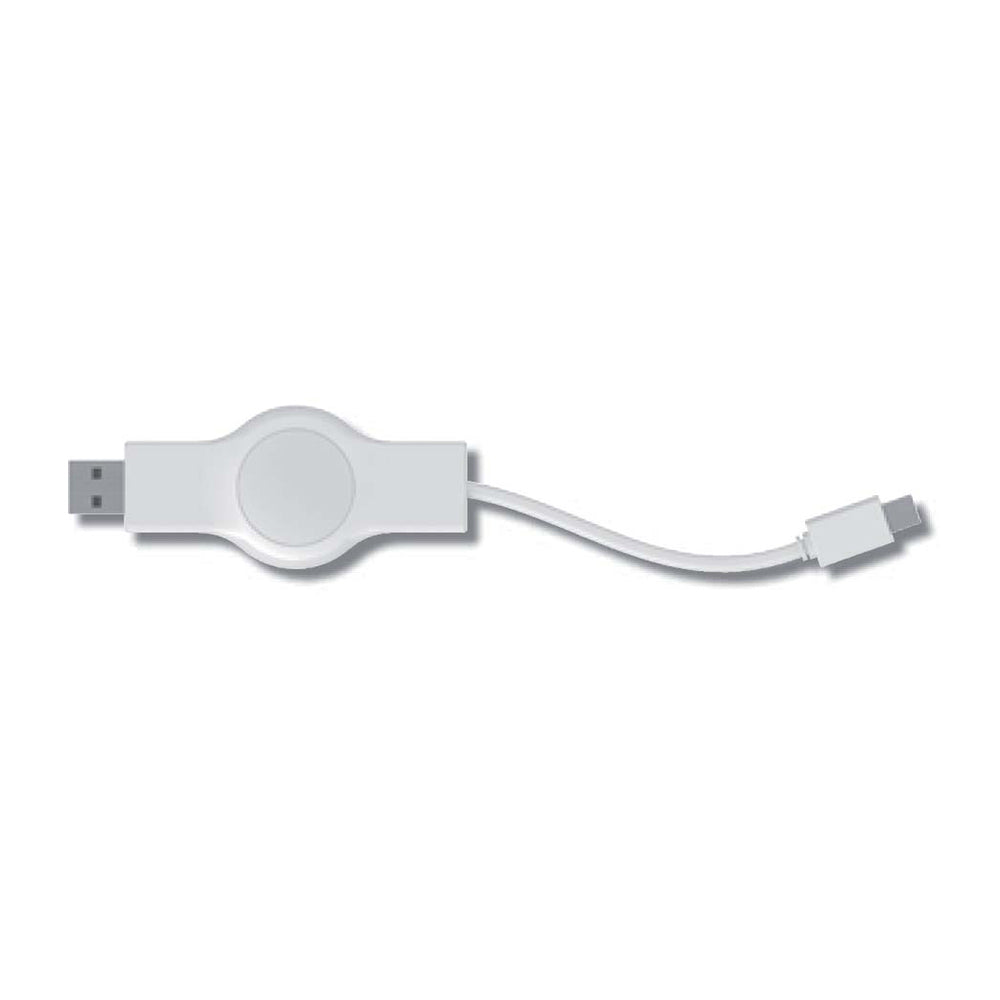

- The O63P programmer is a USB stick with resident software that allows you to create, using a PC, different weekly programming profiles to then download onto the O62C heads via the available microconnector.
- define comfort and economy/night temperature set points;
- define holiday/vacation periods;
- Summary print function of the programmed single profile;
- Microconnector for connection to the O62C head;
- PC data interface: USB 1.1 or 2.0;
- System requirements: Windows XP or later;
-
Three different temperature setpoints: comfort, economy/night, and antifreeze;
-
Automatic or manual operation;
-
Generic function;
-
Temporary lock function for open window;
-
Keypad lock function (child safety);
-
Automatic weekly anti-calcification implementation function;
-
Uses two AA 1.5 V alkaline batteries (pen type) with a battery life of over 3 years;
-
Standard M30x1.5 connection, different adapters available for other valve types;
-
Microconnector for O63P programmer connection;
-
Programmable via the menu locally or via the O63P programmer
Adaptable to the following brands of thermostatic valves:
-
Without adapters:
- Heimeier, MNG, Junkers, Landis&Gyr
- “Duodyr”, Honeywell-Braukmann,
- Oventrop, Schlösser, Simplex, Valf
- Sanayii, Mertik Maxitrol, Watts,
- Wingenroth (Wiroflex), R.B.M.,
- Tiemme, Emmeti, Jaga, Watts-Cazzanig
-
With adapter sold separately:
- CALEFFI
