Description

Universal support for the

FIXING OF WALL-HUNG TOILETS

SUITABLE FOR WC AND BIDET

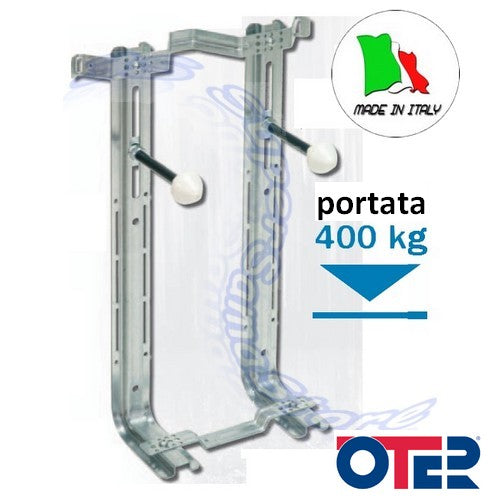

 UNIVERSAL WALL-HUNG SANITARY SUPPORT OTER 490 BASE

FEATURES:

 • Support allowing the fixing of the sanitary ware only, whether WC or BIDET.

• It complies with regulations: UNI EN 997:2004 - Installed in the wall, it is tested for a load of 400 kg.

• Sanitaryware interaxial distance: 160 - 180 - 200 - 230 [mm].

• Material: High-strength structural sheet metal hot-dip galvanized Sendzimir. 20/10.

• The assembly between the uprights and crossbeams is done using a PIN/HOLE coupling, locked by three-lobe self-tapping screws, which guarantees rigidity. for structuring and maintaining the defined wheelbase.

  • Possibility to adjust the height of the sanitary fixings during the installation of the pipes.

 • The upper crossbeam allows the installation of the cistern's wastewater discharge pipe, without any interference, even when insulated.

 • It is assembled using a PH3 Phillips screwdriver and a 19 mm wrench.

Product code: 0490Z





Description

Universal support for the

FIXING OF WALL-HUNG TOILETS

SUITABLE FOR WC AND BIDET

 UNIVERSAL WALL-HUNG SANITARY SUPPORT OTER 490 BASE

FEATURES:

 • Support allowing the fixing of the sanitary ware only, whether WC or BIDET.

• It complies with regulations: UNI EN 997:2004 - Installed in the wall, it is tested for a load of 400 kg.

• Sanitaryware interaxial distance: 160 - 180 - 200 - 230 [mm].

• Material: High-strength structural sheet metal hot-dip galvanized Sendzimir. 20/10.

• The assembly between the uprights and crossbeams is done using a PIN/HOLE coupling, locked by three-lobe self-tapping screws, which guarantees rigidity. for structuring and maintaining the defined wheelbase.

  • Possibility to adjust the height of the sanitary fixings during the installation of the pipes.

 • The upper crossbeam allows the installation of the cistern's wastewater discharge pipe, without any interference, even when insulated.

 • It is assembled using a PH3 Phillips screwdriver and a 19 mm wrench.

Product code: 0490Z





MARQUE by OTER

UNIVERSAL SUPPORT FOR WALL-HUNG TOILETS AND BIDETS - BASE OTER MODEL

0490Z

21,15 €
21,15 €
Tax included. Shipping calculated at checkout.
Delivery in 2 to 3 days
Fast delivery throughout Belgium. Free on orders over €200.
You have 30 days to return your product.
Free returns for any product not installed in its original packaging.
2-year warranty
Parts and labor covered. 24/7 STS technical support included.
