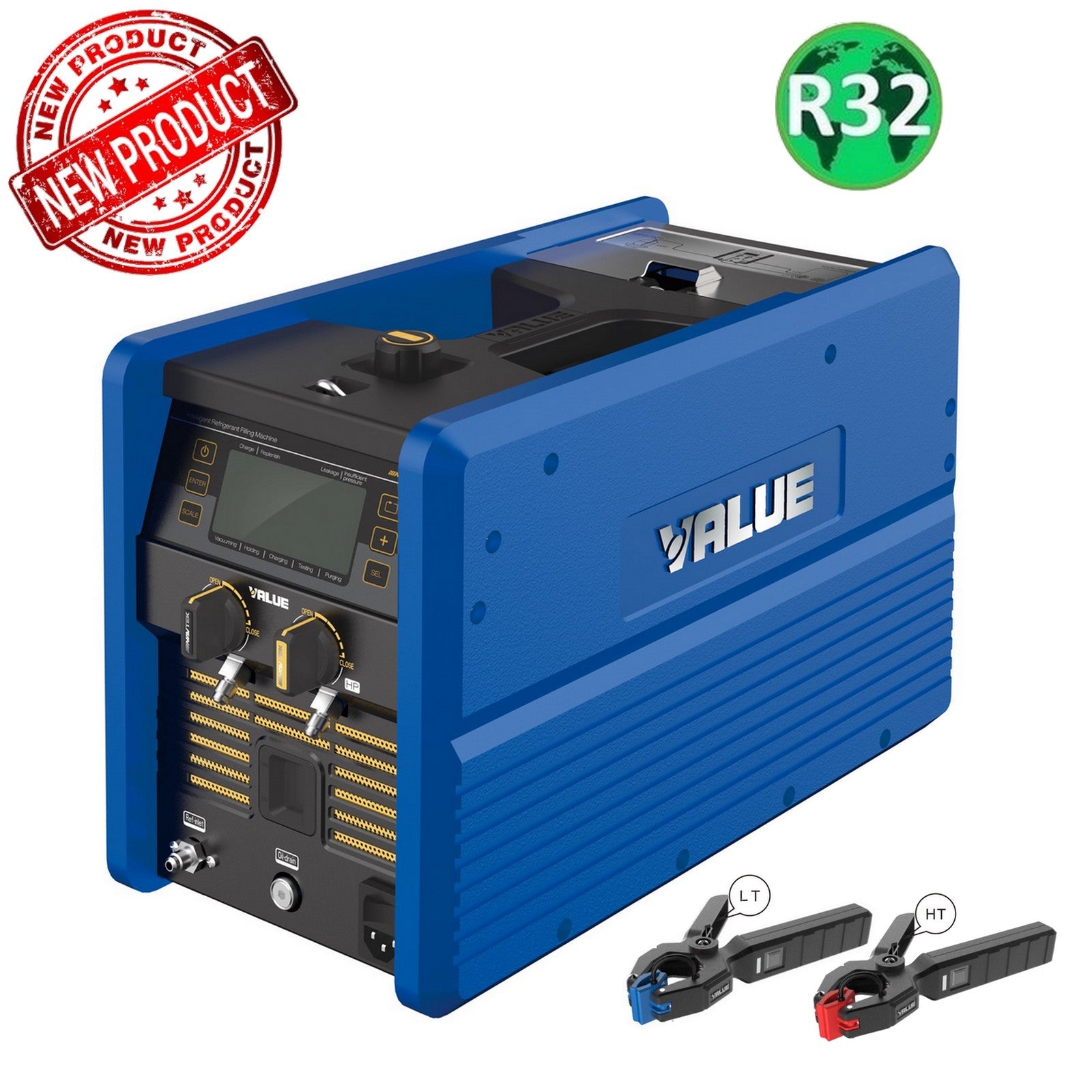

CHARGING AND VACUUM STATION
< p style='text-align: center;'>PORTABLE AUTOMATIC - WITH WIRELESS TEMPERATURE PROBES
FEATURES: ; ;
The world's first smart and portable NAVTEK automatic station is an innovative multifunctional tool, dedicated to professionals in the HVAC sector.
It contains everything needed to ensure a perfect start-up and simple maintenance of air conditioning/refrigeration systems.
The station carries out three actions autonomously and safely: < /span>
- Vacuum/drying system operation;
- < li> Vacuum value monitoring and leak detection operation;
- System charging operation and adjustment of operating pressures.

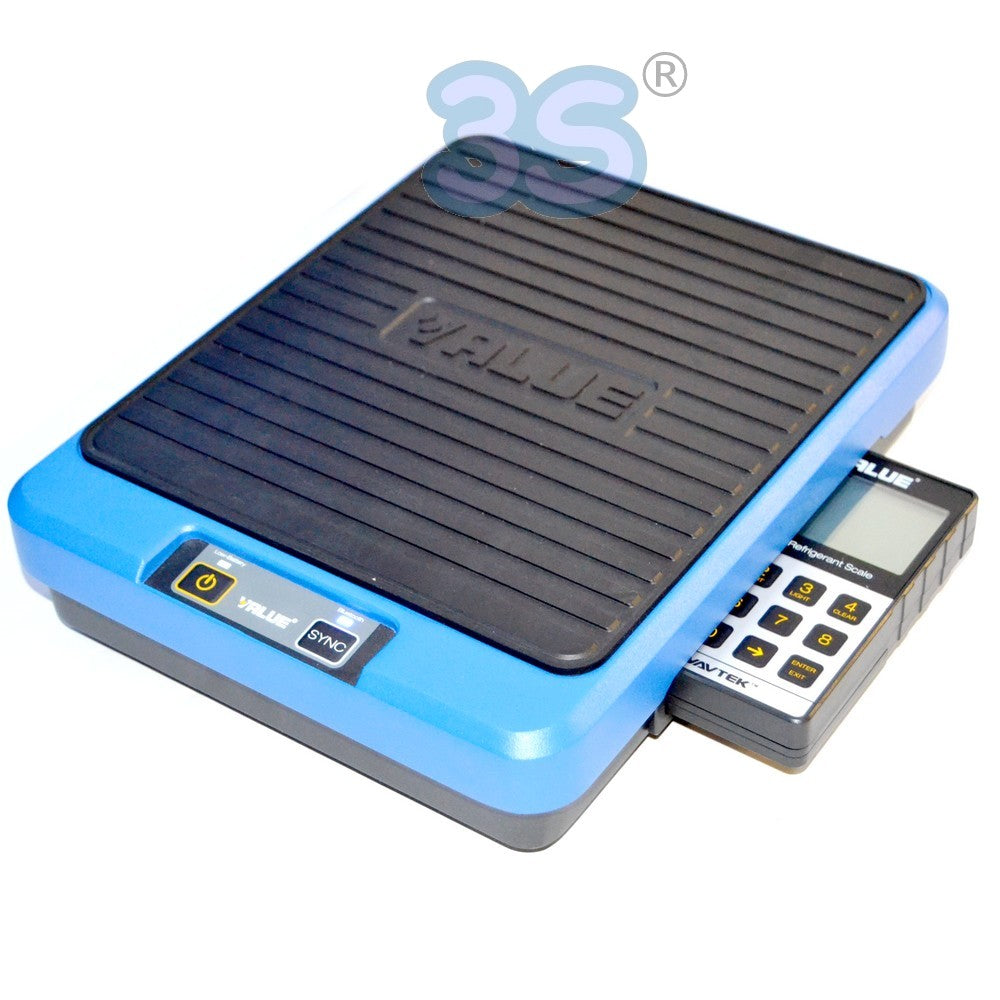

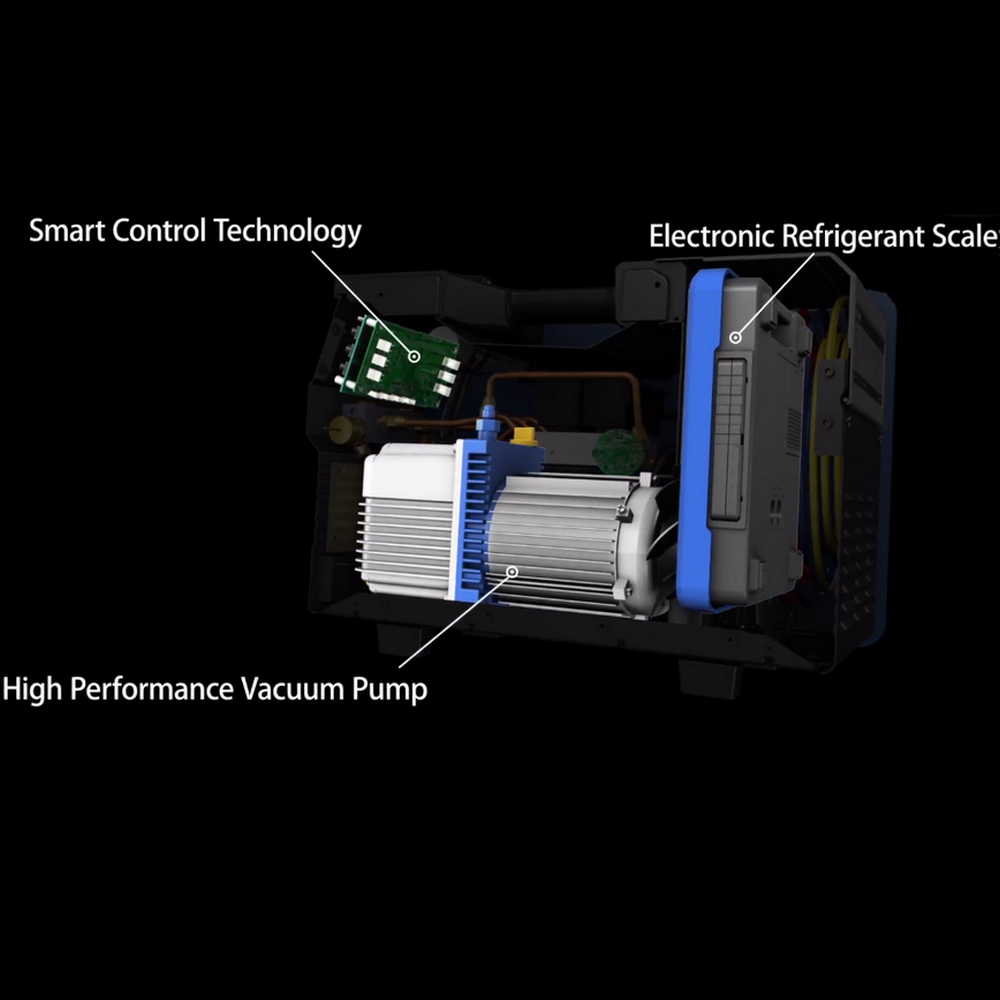

The station is equipped with a precise wireless digital scale housed in a special compartment, 3 flexible hoses for connection to systems, a high-flow dual-stage vacuum pump (170 LT/min) and digital manifold (approved for R32, R1234YF and R1234ZE)
It minimizes the possibilities of errors during the delicate phases of installation/maintenance of refrigeration systems, thanks to the possibility of being fully programmable by the operator (vacuum value to be achieved, amount of refrigerant to be inserted into the system, and operating pressures/temperatures to be met).
STATION TECHNICAL DATA:
Power supply: 230 V~50-60 hz
Vacuum level: 6.0 CFM
Charge: 30 g/s
Motor power: 1/2 Hp
Operating temperature: 5°C~40°C
< span style='font-size: 14pt;'>Dimensions: 484 x 254 x 328 mm
Weight: 21.3 Kg < /p>

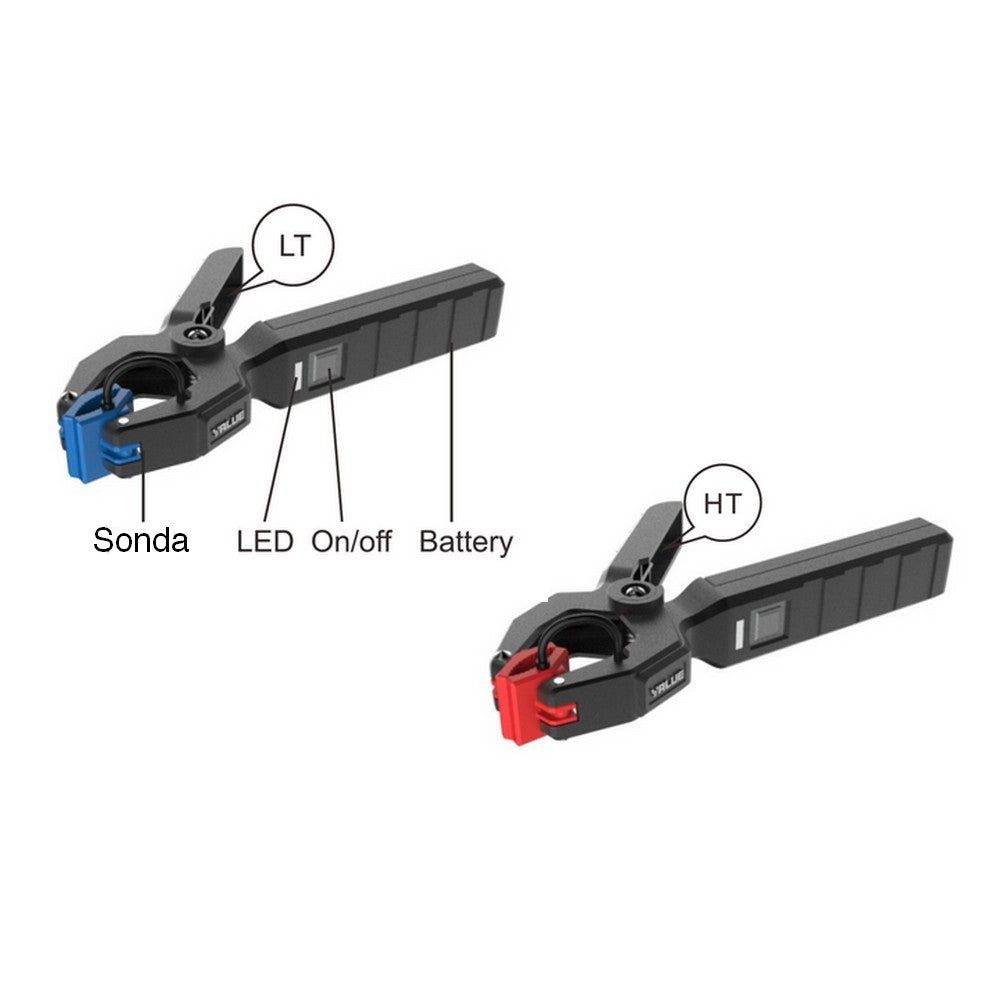

PROBES TECHNICAL DATA:
Measurement range: -40°C~+150°C< / span>
Accuracy: ±1.3°C (-20 ~ 85°C)
Resolution: 0.1°C
Measurement units: °F, °C
Operating temperature: -20 ~ +50°C
Storage temperature: -20 ~ +60°C
Automatic shutdown after 5 minutes of non-synchronization
Tube size: Ø6 ~ Ø
Battery type: 3xAAA
Battery life: > 400 hours
Bluetooth distance: ≤ 8 m
Dimensions: 182 x 100 x 28 mm
Product code: VRC-6100D
