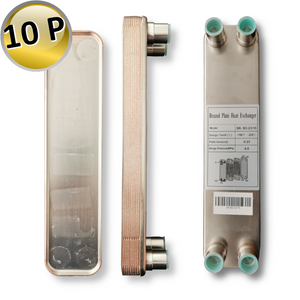

10-plate, 3kW Brazed Plate Heat Exchanger. 3/4" (19.05mm) Odds Connections. Brazed Plate Heat Exchangers provide efficient heat transfer with a minimal footprint. They have a long lifespan, are maintenance-free, and are resistant to high temperatures and extremely high pressures. Brazed plate heat exchangers are used in a wide range of applications, including cooling, heating, evaporation, and condensation. Various applications: underfloor heating, radiator heating, and domestic hot water production, as well as commercial refrigeration. Brazed plate heat exchangers are used in a wide range of cooling and heating applications. The advantages of brazed exchangers are numerous. Brazing technology eliminates the need for gaskets and thick frame plates. It also offers excellent pressure and thermal fatigue resistance in a wide range of heating and cooling applications.

• Reduced initial investment

• Reduced footprint

• Reduced installation costs

• Reduced downtime

• Maximum reliability

Specifications:

• ODS Mounting: 3/4″ (19.05 mm);

• Rotalock Connection: 1 3/4;

• Height: 315 mm;

• Width: 75 mm;

• Depth: 20 mm;

• Body: Stainless steel;

• Operating Temperature: -195 °C | +250 °C.

Product Code: SR-B3-23/10
