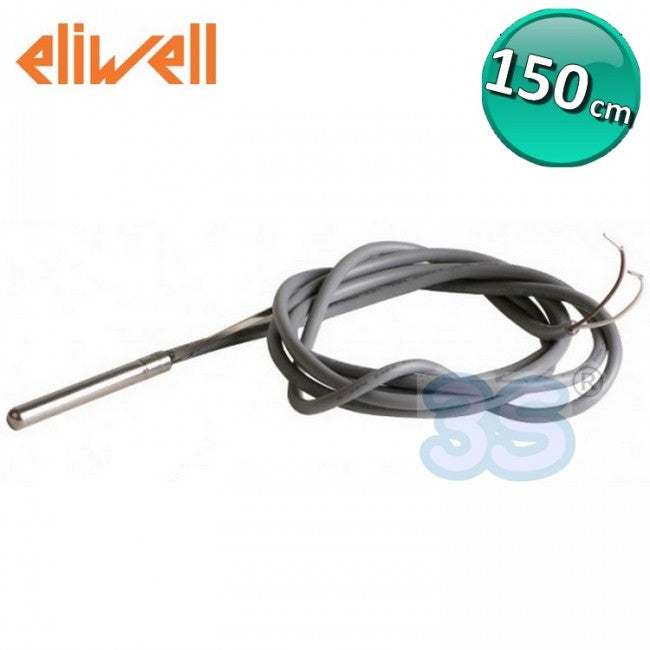

NTC PROBE - cable length 150 cm

for Eliwell temperature controllers

General probe data / Tolerance (mm):

• Code SN8P0A1500

• Description NTC with steel tube

• Element type NTC 10K ±1% BETA 3435

• 3 Sensor model AISI 304 Capsule material AISI 304

• Capsule length 40 mm +/- 0.2

• Capsule diameter 6 mm +/- 0.1

• Cable type PVC

• Color Grey

• Diameter 2X0.25 Ø 4.6 mm +/- 0.15

• Probe length (1) 1.5 m +/- 10.0

• Cable/tube connection none

• Terminal tips

• Filling polyurethane resin

Technical characteristics

• Working range -30…+80°C

• Accuracy ±1%

• Protection class IP 67

• Response time K = 10" in liquid V = 2 m/s

Test tests

• Tensile test 2 kg

• Insulation resistance 20Mohm at 500 Vdc

• Dielectric strength 2000V~

Product code: SN8P0A1500
