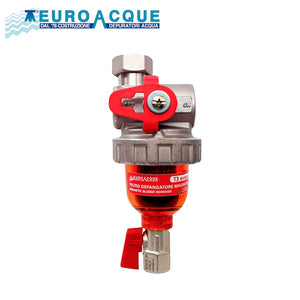

SPACE-SAVING MAGNETIC FILTER CLEANER WITH BY-PASS

mod. BY-PASS T3 - EUROACQUE

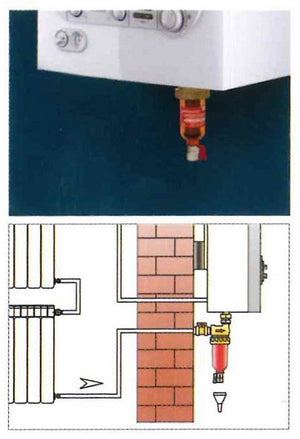

Magnetic filter dirt separator Mini magnetic filter dirt separator with square connection, upper tab and integrated bypass and system shut-off valve for easy, fast, and space-saving installation (with the T3, in less than 5 cm center distance for a maximum height of 15 cm, you have everything: dirt separator and valve) under condensing boilers.

The only dirt separator with an integrated 3-function valve:

• ON;(dirt separator and system operating);
• OFF (dirt separator and system closed);
• BY PASS (dirt separator closed for maintenance with the system running).

< span style ='font-size: 13.3333px;'>It's the only system designed so that the non-return valve at the outlet of the dirt separator prevents the boiler from emptying during maintenance.

The small dirt separator, but without sacrificing the settling effect + filtration + magnetic field! Equipped with a pot locking ring which, unlike traditional plastic/brass or plastic threaded fittings,plastic, always allows easy and immediate disassembly even after a few years.

The transparent vase (with brass insert) allows you to < /span>check the condition of the cartridge and the water in the circuit (sight glass).

The double mesh 500 micron stainless steel cartridge is designed to effectively filter even copper and aluminum, which are not blocked by the magnet,as they are non-ferrous materials.

The double reinforcement of the cartridge makes it almost indestructible.

Equipped with a drainage system for expelling the filtrate.

TECHNICAL SPECIFICATIONS:

- Heating/cooling use (90°C).

- Magnet type: 11,000 Gauss Neodymium

- T3: recommended for condensing boilers up to 28 Kw

- T4: recommended for condensing boilers up to 35 kW

- Equipped with a 500 micron reinforced stainless steel filter cartridge

- Flow rate 25 Lt/minute

- PN 25 bar

- Connections: 3/4' F

- Length: 15 cm; Center distance: 5 cm

Product code: T0000003
