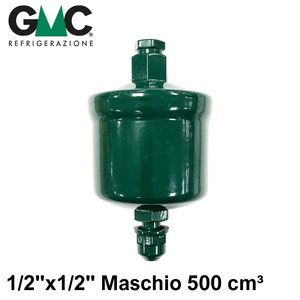

SC324MM Drier filter - GMC
a solid cartridge 100% molecular sieve
1/2'x1/2' sae Male - Male / 500 cm³
USE: Drier filters with solid cartridge 100% molecular sieves have been designed to work with classified fluids
by article 9, paragraph 2.2 of directive PED 97/23/CE as belonging to group II, i.e. non-
toxic, non-flammable and non-explosive; this macro group also includes refrigerant fluids, belonging to
< p style='margin-bottom: 0cm;'>to group L1 according to the classification of standard EN 378- 1:2008 and listed in Annex E of the standard itself.These drier filters are particularly suitable for HFC fluids and POE, PAGE oils.
CONSTRUCTION: The body and head in UNI EN 10130 – FeP04 steel are assembled by TIG welding without
material contribution - this makes a single body with no discontinuity, highly resistant. The solid cartridge, not
replaceable, is a very compact block of molecular sieves which, combined with a particular type of felt, creates the
necessary mechanical filtering offering minimal resistance to fluid movement to the benefit of dehydration efficiency.
Product code: SC324MM
