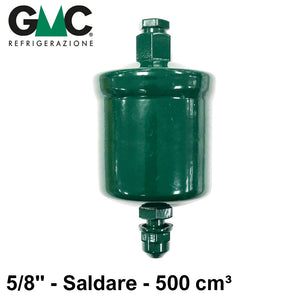

SC305S FILTER DRIER - GMC
100% molecular sieve solid cartridge
5/8'x5/8' copper solder / 500 cm³
USE: Solid cartridge filter driers with 100% molecular sieve have been designed to work with fluids
classified by Article 9, point 2.2 of the PED Directive97/23/EC as belonging to group II, i.e. non-
toxic, non-flammable and non-explosive fluids; this macrogroup also includes refrigerant fluids, belonging to
< p style='margin-bottom: 0cm;'>to group L1 according to the classification of standard EN 378-1:2008 and listed in Annex E of the standard itself.These filter driers are particularly suitable for HFC fluids and POE, PAG oils.
CONSTRUCTION: The body and head made of UNI EN 10130 steel – FeP04 are assembled by TIG welding without
material contribution - this creates a single body withoutdiscontinuity, very resistant. The solid cartridge, not
replaceable, is a very compact block of molecular sieveswhich, combined with a particular type of felt, creates the
necessary mechanical filtration offering minimal resistanceto fluid movement, thus enhancing dehydration efficiency.
Product code: SC305S
