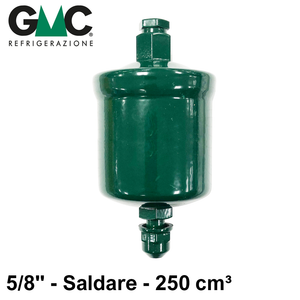

SC165S Dryer Filter - GMC
a solid cartridge 100% molecular sieve
5/8'x5/8' copper weld / 250cm³
USE: Solid cartridge dryer filters with 100% molecularsieve were designed to work with fluids
classified by article 9, point 2.2 of the PED directive97/23/EC as belonging to group II, i.e., non-
toxic, non-flammable and non-explosive fluids; this macrogroup also includes refrigerant fluids, belonging to
< p style='margin-bottom: 0cm;'>group L1 according to the classification of standard EN 378-1:2008 and listed in Annex E of the standard itself.These dryer filters are particularly suitable forHFC fluids and POE, PAGE oils.
CONSTRUCTION: The body and head made of UNI EN 10130 steel– FeP04 are assembled by TIG welding without
material contribution - this creates a single body withoutdiscontinuity, very resistant. The solid cartridge, not
replaceable, is a very compact block of molecular sieveswhich, combined with a particular type of felt, creates the
necessary mechanical filtering offering minimal resistanceto fluid movement, benefiting dehydration efficiency.
Product Code: SC165S
