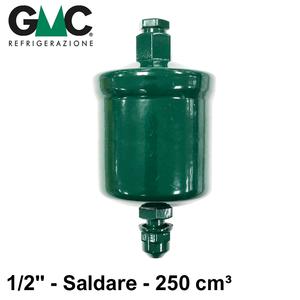

SC164S Drier Filter - GMC
a solid 100% molecular sieve cartridge
1/2'x1/2' copper weld / 250cm³
USE: The 100% molecular sieve solid cartridge drier filtershave been designed to work with fluids
classified by Article 9, point 2.2 of the PED Directive97/23/CE as belonging to group II, i.e. non-
toxic, non-flammable and non-explosive fluids; this macrogroup also includes refrigerant fluids, belonging to
< p style='margin-bottom: 0cm;'>group L1 according to the classification of standard EN 378-1:2008 and listed in Annex E of the standard itself.These drier filters are particularly suitable forHFC fluids and POE, PAGE oils.
CONSTRUCTION: The body and head in UNI EN 10130 steel– FeP04 are assembled by TIG welding without
material contribution - this results in a single body withoutdiscontinuity, very resistant. The solid cartridge, not
replaceable, it is a very compact block of molecular sieveswhich, combined with a particular type of felt, creates the
necessary mechanical filtering offering minimal resistanceto fluid movement, benefiting dehydration efficiency.
Product Code: SC164S
