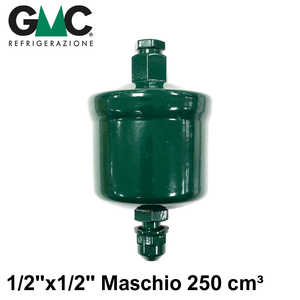

Filter drier SC164MM - GMC
a solid 100% molecular sieve cartridge
1/2'x1/2' sae Male - Male / 250 cm³
USE: Filter driers with 100% molecular sieve solid cartridge have been designed to work with fluids classified
in article 9, paragraph 2.2 of the PED Directive 97/23/CE as belonging to Group II, i.e. non-
toxic, non-flammable and non-explosive; this group also includes refrigerating fluids, belonging to
< p style='margin-bottom: 0cm;'>group L1 according to the classification of standard EN 378-1:2008 and listed in Annex E of the standard itself.These filter driers are particularly suitable for HFC fluids and POE, PAGE oils.
CONSTRUCTION: The body and head made of UNI EN 10130 steel – FeP04 are assembled by TIG welding without
material contribution - this realizes a single body without discontinuity, very resistant. The solid cartridge, not
replaceable, is a very compact block of molecular sieves which, combined with a particular type of felt, creates the
necessary mechanical filtering offering minimal resistance to fluid movement to the benefit of dehydration efficiency.
Product code: SC164MM
