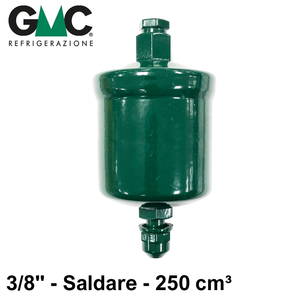

SC163S FILTER DRIER - GMC
100% molecular sieve solid cartridge
3/8'x3/8' copper solder - 250cm³
USE: Solid cartridge filter driers with 100% molecularsieve have been designed to work with fluids
classified by Article 9, point 2.2 of Directive PED97/23/CE as belonging to group II, i.e., non-
toxic, non-flammable and non-explosive fluids; this macrogroup also includes refrigerating fluids, belonging to
< p style='margin-bottom: 0cm;'>group L1 according to the classification of standard EN 378-1:2008 and listed in Annex E of the standard itself.These filter driers are particularly suitable forHFC fluids and POE, PAG oils.
CONSTRUCTION: The body and head in UNI EN 10130 steel– FeP04 are assembled by TIG welding without
filler material - this creates a single body withoutdiscontinuity, very resistant. The solid, non-
replaceable cartridge is a very compact block of molecular sieveswhich, combined with a particular type of felt, creates the
necessary mechanical filtering offering minimal resistanceto fluid movement to the benefit of dehydration efficiency.
Product Code: SC163S
