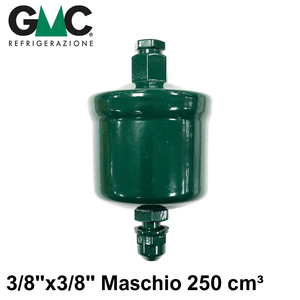

SC163MM Drier Filter - GMC
a 100% molecular sieve solid cartridge
3/8'x3/8' sae Male - Male / 250 cm³
USE: Solid cartridge drier filters 100% molecular sieves are designed to work with fluids classified
from article 9, paragraph 2.2 of the PED directive97/23/EC as belonging to group II, i.e., non-
toxic, non-flammable and non-explosive; this macro group also includes refrigerant fluids, belonging to
< p style='margin-bottom: 0cm;'>to group L1 according to the classification of standard EN 378- 1:2008 and listed in Annex E of the standard itself.These drier filters are particularly suitable for HFC fluids and POE, PAG oils.
CONSTRUCTION: The body and head in UNI EN 10130 steel – FeP04 are assembled by TIG welding without
material contribution - this creates a single body withoutdiscontinuity, very resistant. The solid cartridge, not
replaceable, it is a very compact block of molecular sieveswhich, combined with a particular type of felt, creates the
necessary mechanical filtering providing minimal resistance to fluid movement, benefiting dehydration efficiency.
Product code: SC163MM
