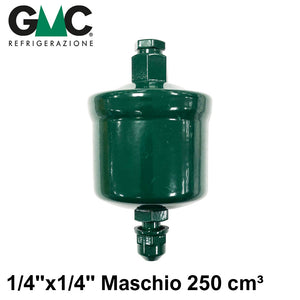

Drier Filter SC162MM - GMC
a solid 100% molecular sieve cartridge
1/4'x1/4' sae Male - Male / 250 cm³
USE: Solid cartridge drier filters 100% molecular sieves have been designed to work with fluids classified
from article 9 point 2.2 of the PED directive97/23/CE as belonging to group II, i.e. non-
toxic, non-flammable and non-explosive; this macro group also includes refrigerant fluids, belonging to
< p style='margin-bottom: 0cm;'>to group L1 according to the classification of standard EN 378- 1:2008 and listed in Annex E of the standard itself.These drier filters are particularly suitable for HFC fluids and POE, PAGE oils.
CONSTRUCTION: The body and head in UNI EN 10130 steel – FeP04 are assembled by TIG welding without
material contribution - this makes a single body withoutdiscontinuity, very resistant. The solid cartridge, not
replaceable, it is a very compact block of molecular sieveswhich, combined with a particular type of felt, creates the
necessary mechanical filtering offering minimal resistance to fluid movement to the benefit of dehumidification efficiency.
Product Code: SC162MM
