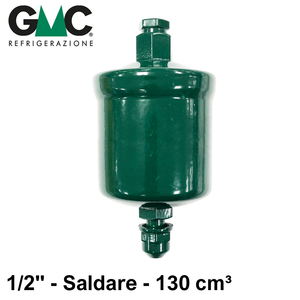

DRIER FILTER SC084S - GMC
a solid 100% molecular sieve cartridge
1/2'x1/2' copper weld - 130 cm³
USE: The 100% molecular sieve solid cartridge drier filters have been designed to work with fluids
classified by article 9, paragraph 2.2 of the PED Directive 97/23/CE as belonging to group II, i.e. fluids that are non-
toxic, non-flammable and non-explosive; this macro group also includes refrigerating fluids, belonging to
< p style='margin-bottom: 0cm;'>group L1 according to the classification of standard EN 378- 1:2008 and listed in Annex E of the standard itself.These drier filters are particularly suitable for HFC fluids and POE, PAGE oils.
CONSTRUCTION: The UNI EN 10130 steel body and head – FeP04 are assembled by TIG welding without
material contribution - this results in a single body with no discontinuity, very resistant. The solid cartridge, not
replaceable, it is a very compact block of molecular sieves which, combined with a particular type of felt, creates the
necessary mechanical filtering offering minimal resistance to fluid movement to the benefit of dehydration efficiency.
Product Code: SC084S
