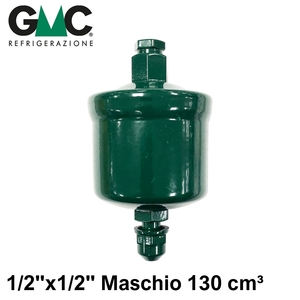

SC084MM Drier filter - GMC
100% molecular sieve solid cartridge
1/2'x1/2' sae Male - Male / 130 cm³
USE: Drier filters with 100% solid molecular sieve cartridge molecules have been designed to work with classified fluids
under Article 9, point 2.2 of the PED Directive 97/23/CE as belonging to Group II, i.e. non-
toxic, non-flammable and non-explosive; this macro Group also includes refrigerant fluids, belonging to
< p style='margin-bottom: 0cm;'>Group L1 according to the classification of standard EN 378- 1:2008 and listed in Annex E of the standard itself.These drier filters are particularly suitable for HFC fluids and POE, PAGE oils.
CONSTRUCTION: The body and head in UNI EN 10130 steel – FeP04 are assembled by TIG welding without
material contribution - this creates a single body withoutdiscontinuity, very resistant. The solid cartridge, not
replaceable, it is a very compact block of molecular sieveswhich, combined with a particular type of felt, creates the
necessary mechanical filtering offering minimal resistance to fluid movement, benefiting dehydration efficiency.
Product code: SC084MM
