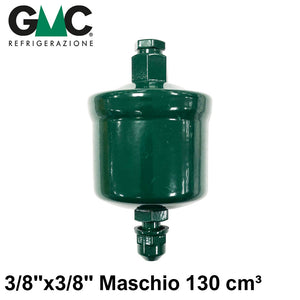

SC083MM drier filter - GMC
a solid 100% molecular sieve cartridge
3/8'x3/8' sae Male - Male / 130 cm³
USE: Filter driers with solid 100% molecular sieve cartridge have been designed to work with fluids classified
in article 9, point 2.2 of the PED Directive97/23/CE as belonging to group II, i.e. non-
toxic, non-flammable and non-explosive; this macro group also includes refrigerant fluids, belonging to
< p style='margin-bottom: 0cm;'>group L1 according to the classification of standard EN 378- 1:2008 and listed in Annex E of the standard itself.These filter driers are particularly suitable for HFC fluids and POE, PAGE oils.
CONSTRUCTION: The body and head in UNI EN 10130 steel – FeP04 are assembled by TIG welding without
material contribution - this creates a single body withoutdiscontinuity, very resistant. The solid cartridge, not
replaceable, is a very compact block of molecular sieveswhich, combined with a particular type of felt, creates the
necessary mechanical filtration offering minimal resistance to the movement of the fluid for the benefit of dehydration efficiency.
Product code: SC083MM
