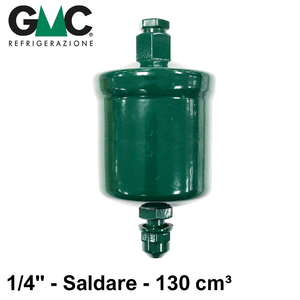

SC082S DRIER FILTER - GMC
a solid 100% molecular sieve cartridge
1/4'x1/4' copper solder - 130 cm³
USE: Solid drier filters with 100% molecular sieve cartridge have been designed to work with fluids
classified by article 9, point 2.2 of the PED Directive 97/23/EC as belonging to group II, i.e. non-
toxic, non-flammable and non-explosive fluids; this macro group also includes refrigerant fluids, belonging to
< p style='margin-bottom: 0cm;'>group L1 according to the classification of standard EN 378- 1:2008 and listed in Annex E of the standard itself.These drier filters are particularly suitable for HFC fluids and POE, PAGE oils.
CONSTRUCTION: The body and head in UNI EN 10130 steel – FeP04 are assembled by TIG welding without
material contribution - this creates a single body withoutdiscontinuity, very resistant. The solid cartridge, not
replaceable, is a very compact block of molecular sieves which, combined with a particular type of felt, creates the
necessary mechanical filtering offering minimal resistance to fluid movement, benefiting dehydration efficiency.
Product code: SC082S
