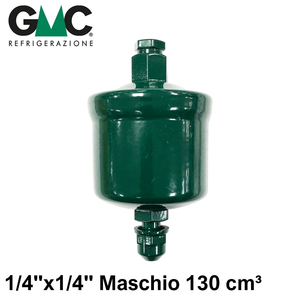

SC082MM Drier filter - GMC

a solid 100% molecular sieve cartridge

1/4'x1/4' sae Male - Male / 130 cm³

USE: Drier filters with solid 100% molecular sieve cartridges have been designed to work with classified fluids

in article 9, point 2.2 of the PED directive97/23/CE as belonging to group II, i.e. non-

toxic, non-flammable and non-explosive; this macro group also includes refrigerant fluids, belonging to

group L1 according to the classification of standard EN 378-1:2008 and listed in Annex E of the standard itself.

These drier filters are particularly suitable for HFC fluids and POE, PAGE oils.

CONSTRUCTION: The body and head made of UNI EN 10130 steel – FeP04 are assembled by TIG welding without

material contribution - this results in a single body with nodiscontinuity, very resistant. The solid cartridge, not

replaceable, is a very compact block of molecular sieveswhich, combined with a particular type of felt, creates the

necessary mechanical filtering offering minimal resistance to fluid movement to the benefit of dehydration efficiency.

Product code: SC082MM
