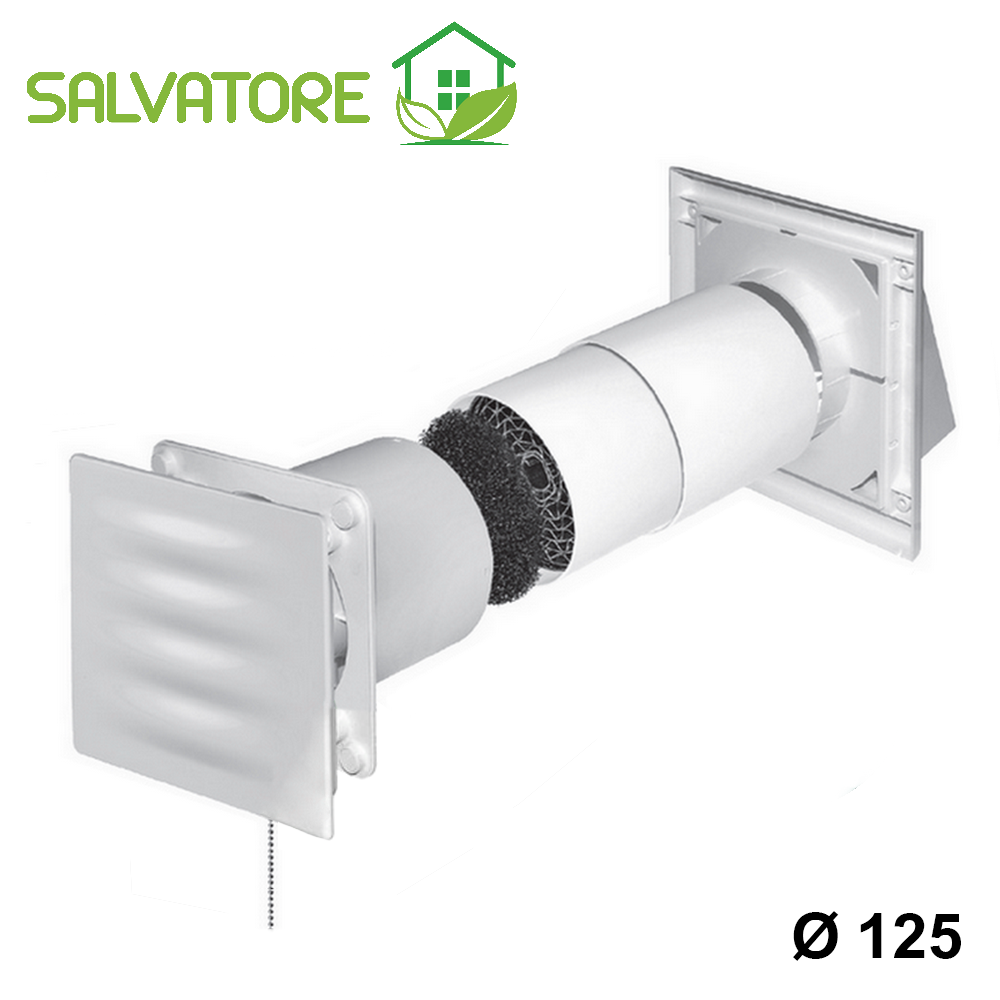

MECHANICAL VENTILATION CONTROL Ø125

compact heat recovery unit for a single room

with integrated heat exchanger

maximum thermal efficiency during air intake 95%

Description:

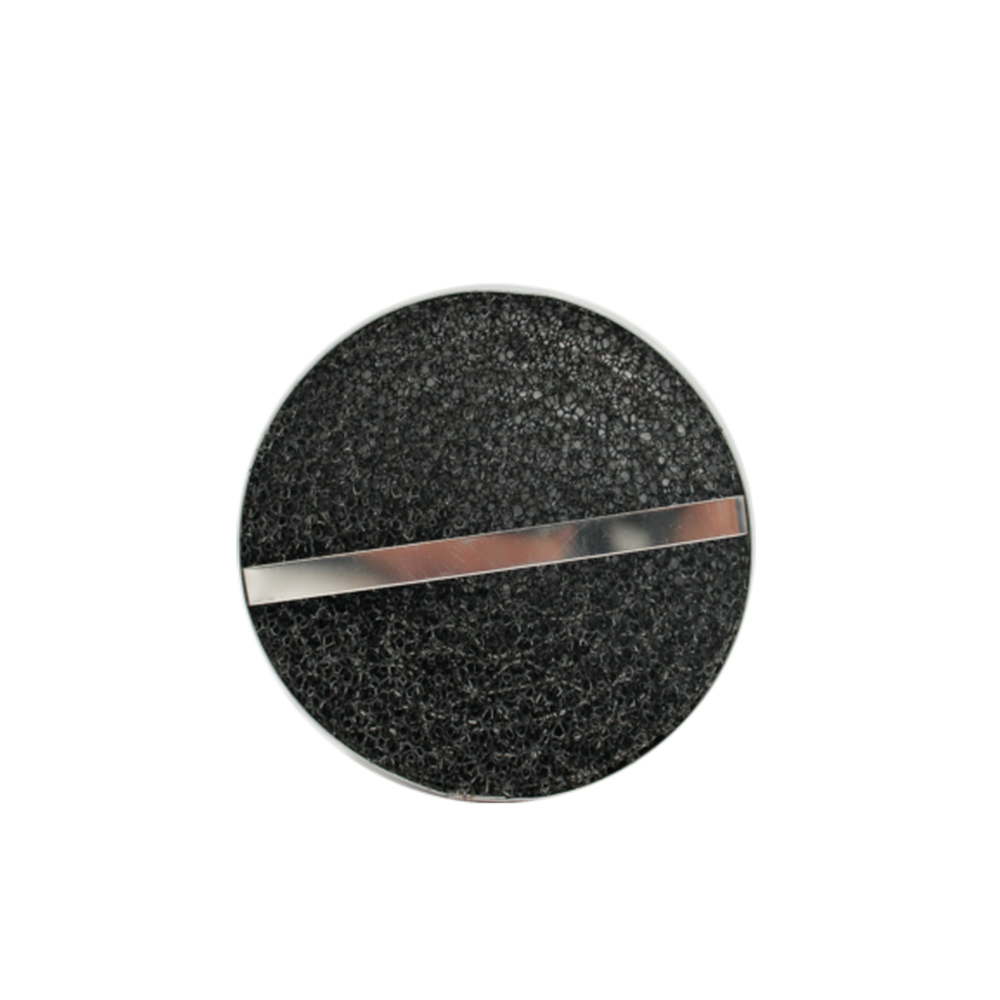

The REC.THC heat recuperator is equipped with an internal exchanger that retains and accumulates heat during the air extraction process from inside the room. The heat accumulated during extraction is released into the fresh air introduced from outside. This solution allows for the introduction of fresh air at practically the same temperature as the room, leading to significant energy savings.The exchanger is made of aluminum, being one of the metals with the best heat exchange potential. Additionally, it is completely sealed and comes with a solid and liquid particle air filter.

Intended use and benefits:

The REC.THC model is designed for use in a single living environment.

The main advantages of this device are:

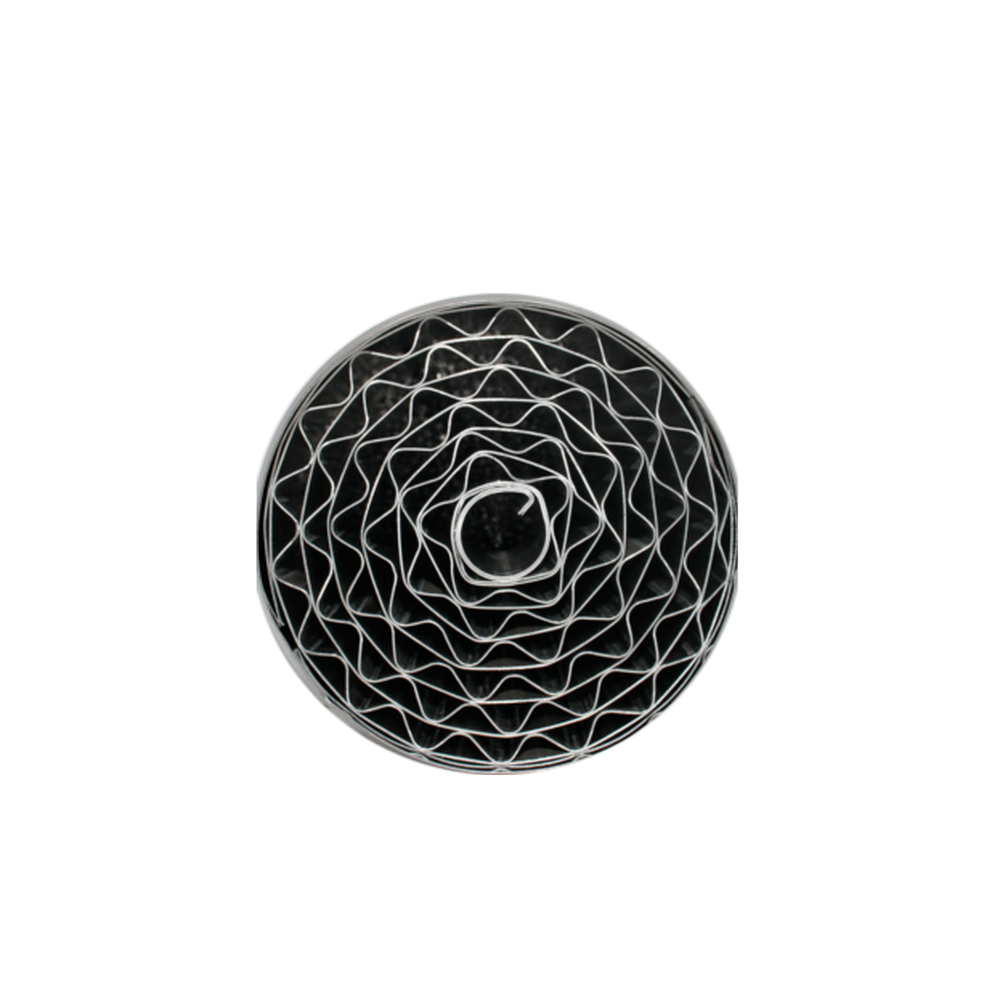

- an innovative heat accumulator made entirely of aluminum (standard accumulators used are ceramic). Aluminum, due to its high accumulation capacity, increases efficiency witha faster exchange speed. Shorter air flow reversal time.

- The proliferation of bacteria and/or fungi is significantly lower on an aluminum surface than on a porous ceramic surface. Aluminum does not absorb moisture, increasing air quality and also ensuring durable exchange even in extreme conditions and even in the presence of humidity.

- At low speed, ventilation consumption is reduced to 3W.

- Simple installation facilitated by a 220/240v power supply.

- Very simple use and control.

- The device allows excellent ventilation with minimal structural intervention.

- Simple wall installation without additional ducts.

- Normally, a fan is used to extract air from an environment, especially in winter, extracting hot air and increasing heating costs. With the use of the REC.THC heating costs are reduced by 1/3.

- Very low noise electric fan.

- No condensate drain duct is needed.

Technical characteristics:

- The product complies with European directives: Low Voltage Directive (LVD) 2006/95/EC, Electromagnetic

Compatibility (EMC) 2004/108/EC, EMF Directive, ROHS2 Directive 2011/65/EU.

- Maximum thermal efficiency in intake phase 95%

- Average thermal efficiency in intake phase from 40 to 45%

- Pipe diameter 125 mm

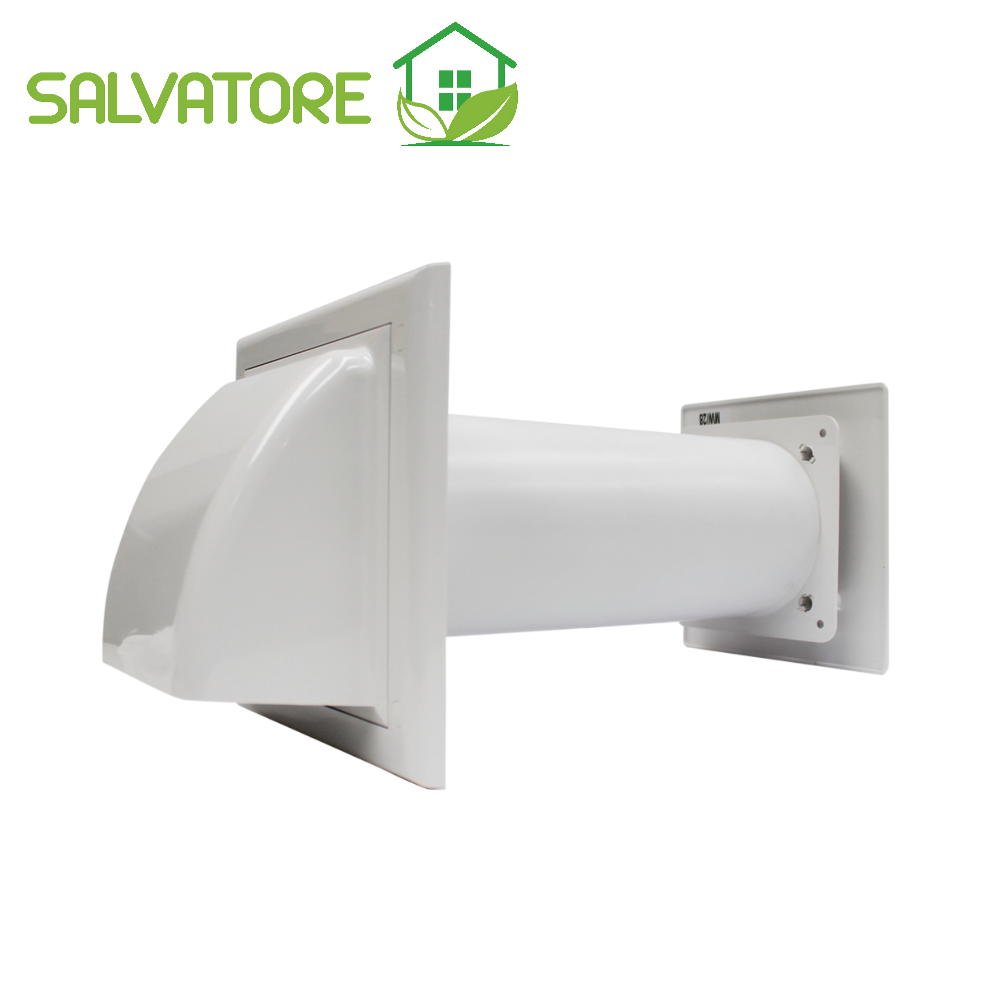

- Telescopic tube adjustable from 260 to 405 mm

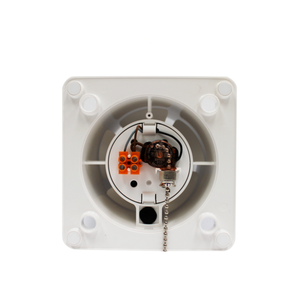

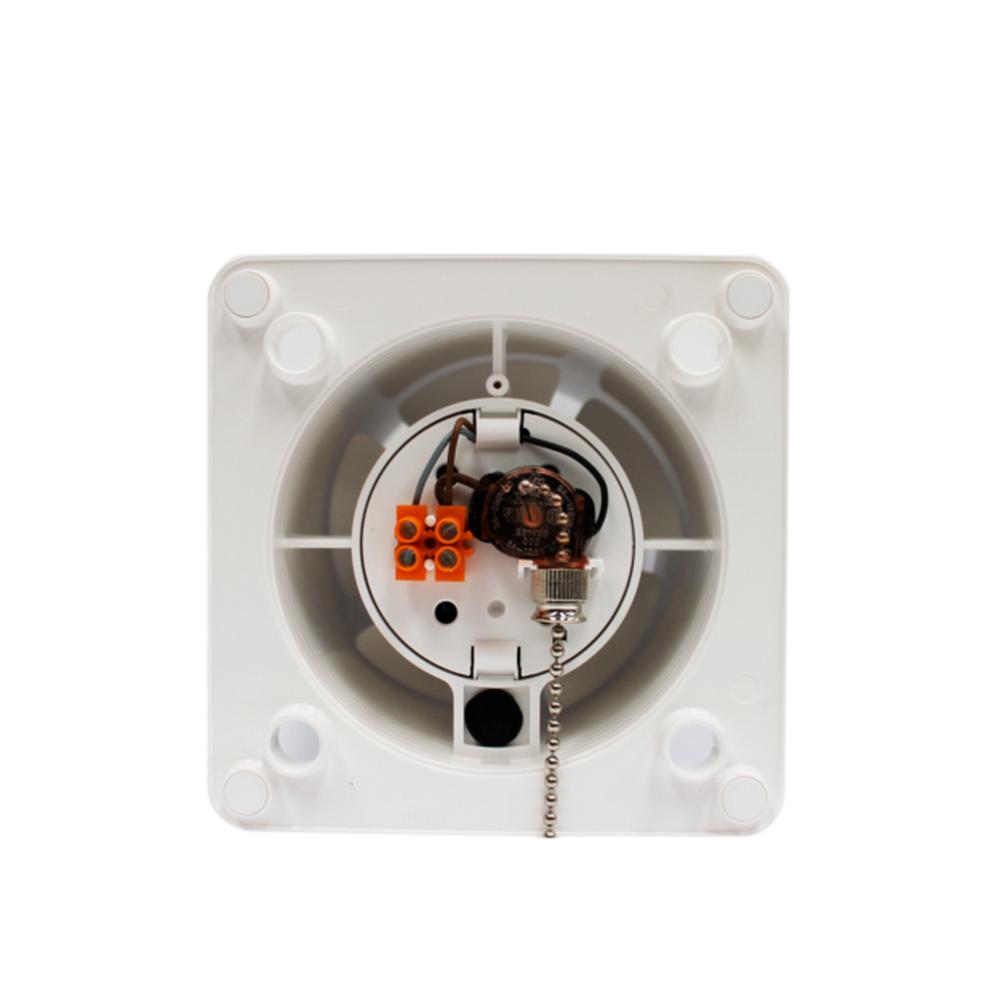

Speed adjustment can be activated via a chain control connected directly to the electric fan body.

Product code: REC.THC
