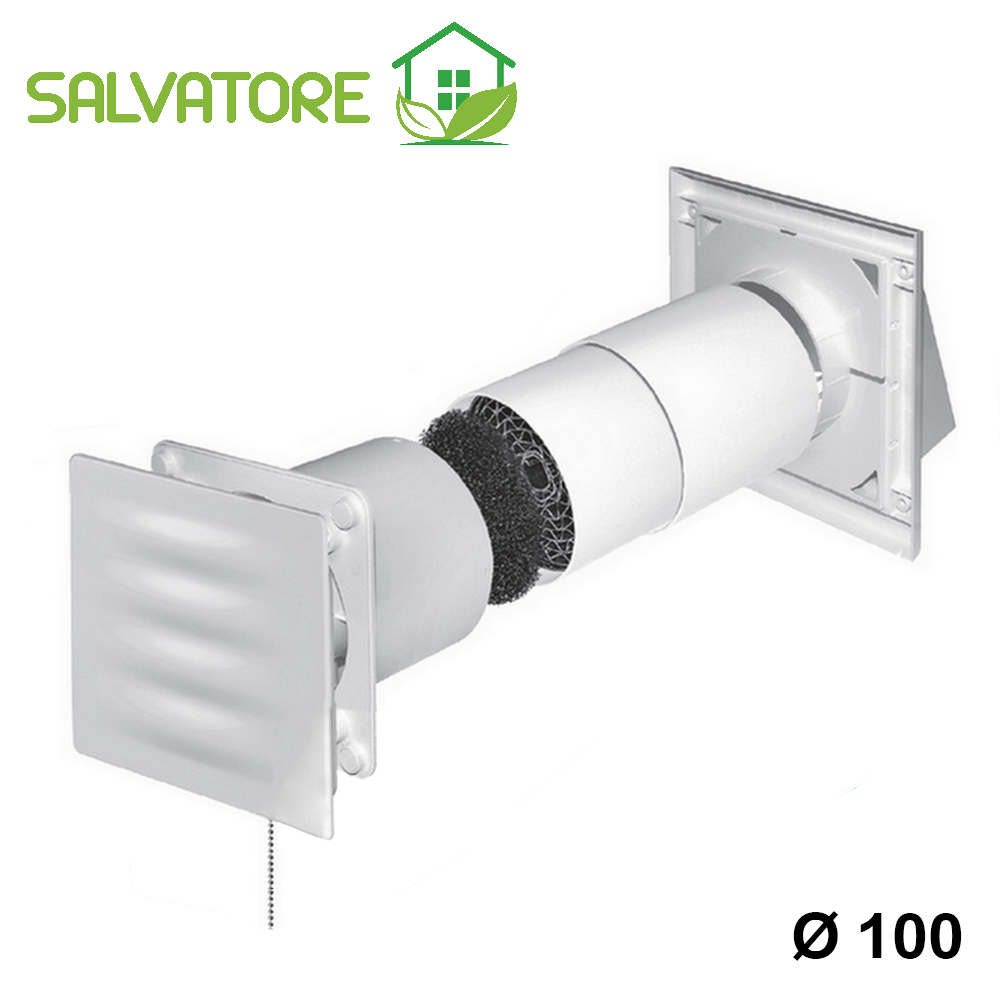

MECHANICAL CONTROLLED VENTILATION Ø100

compact single-room heat recovery unit

with integrated heat exchanger

maximum thermal efficiency during air intake 95%

Description:

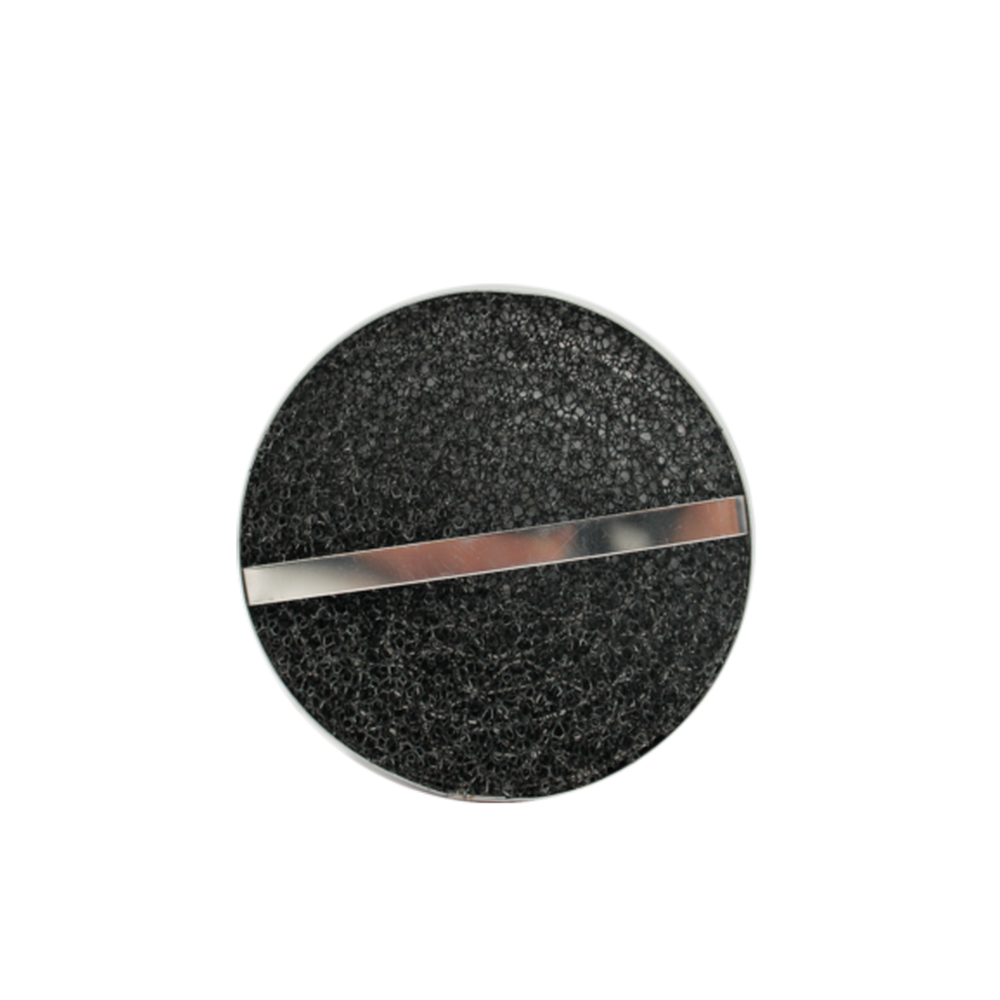

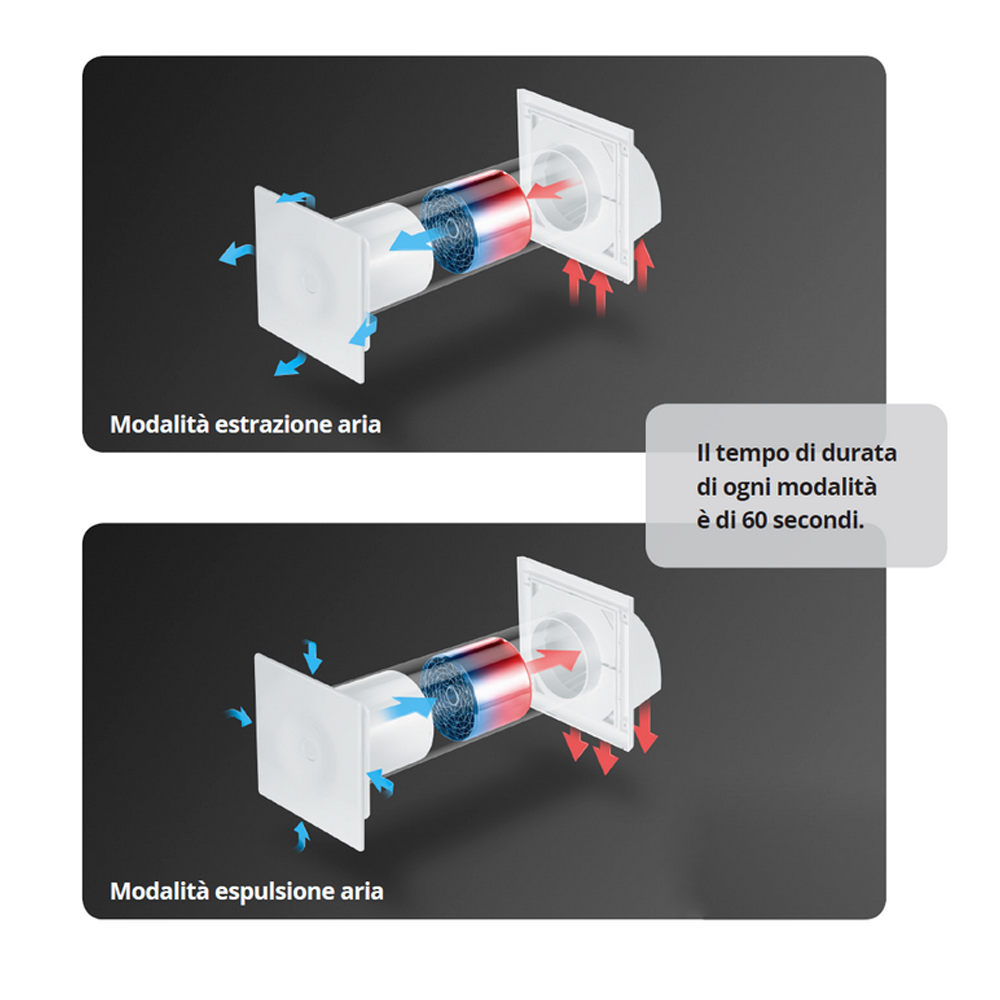

The REC.HRV heat recovery unit is equipped with an internal exchanger that retains and accumulates heat during the air extraction process from inside the room. The heat accumulated during extraction is released into the fresh air introduced from outside. This solution allows the introduction of fresh air practically at the same temperature as the room with significant energy savings.The exchanger is made of aluminum, being one of the metals with the best heat exchange potential. It is also completely sealed and comes with a filter for solid and liquid particles.

Intended use and advantages:

The REC.HRV model is designed for use in a single living environment.

The main advantages of this device are:

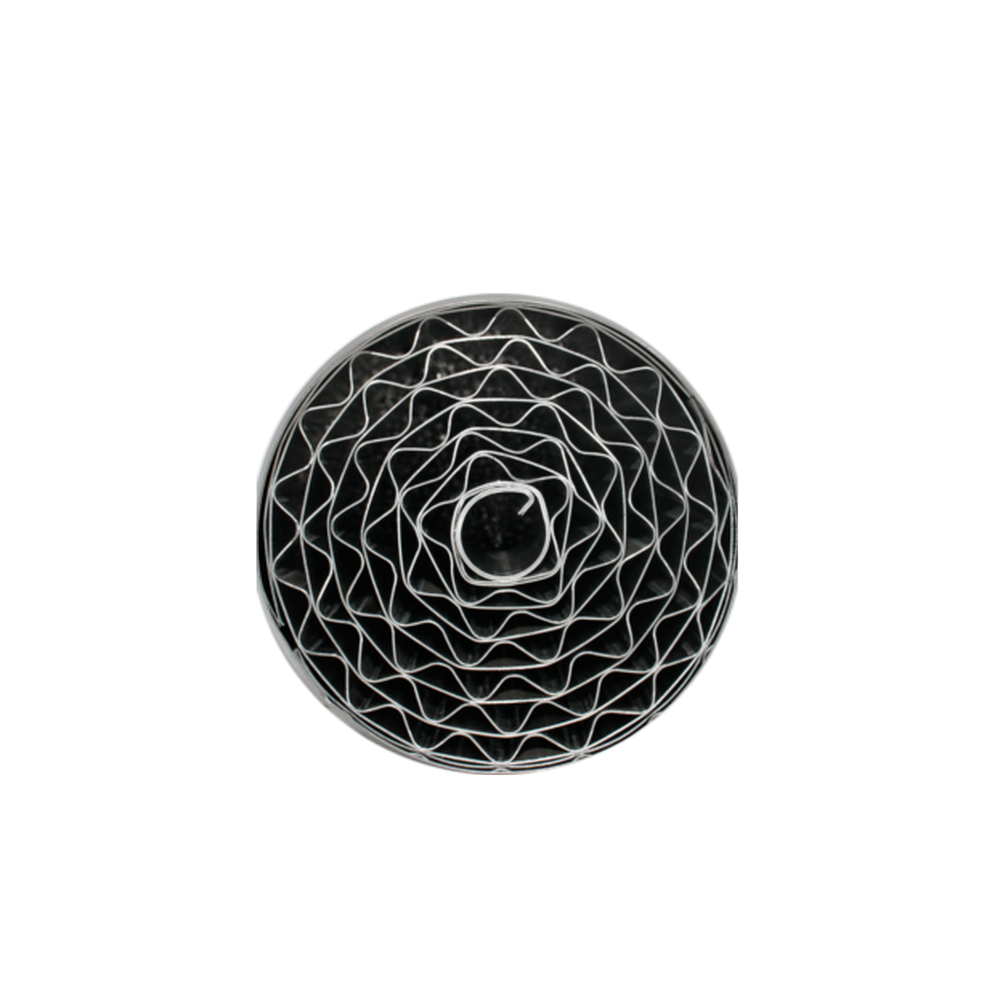

- an innovative heat accumulator entirely made of aluminum (standard accumulators used are ceramic). Aluminum, thanks to its high accumulation capacity, increases efficiency withgreater exchange speed. Shorter air flow reversal time.

- The proliferation of bacteria and/or fungi is significantly lower on an aluminum surface than on a porous ceramic surface. Aluminum does not absorb moisture, improving air quality and also ensuring lasting exchange even in extreme conditions and even in the presence of humidity.

- At low speed, ventilation consumption is reduced to 1.5 W.

- Simple installation facilitated by a 220/240v power supply

- Very simple use and control.

- The device allows excellent ventilation with minimal structural intervention.

- Simple wall installation without additional ducts.

- Normally, a fan is used to extract air from an environment, especially in winter. This extracts hot air, increasing heating costs. With the use of the REC.HRV, heating costs are reduced by 1/3.

- Very low noise electric fan.

- No condensate drain pipe is needed.

Technical features:

- The product complies with European directives: Low Voltage Directive (LVD) 2006/95/CE, Electromagnetic

Compatibility (EMC) 2004/108/CE, EMF Directive, ROHS2 Directive 2011/65/UE.

- Maximum thermal efficiency in intake phase 95%

- Average thermal efficiency in intake phase from 40 to 45%

- Pipe diameter 104 mm

- Telescopic and adjustable tube from 260 to 405 mm

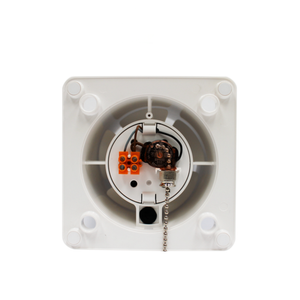

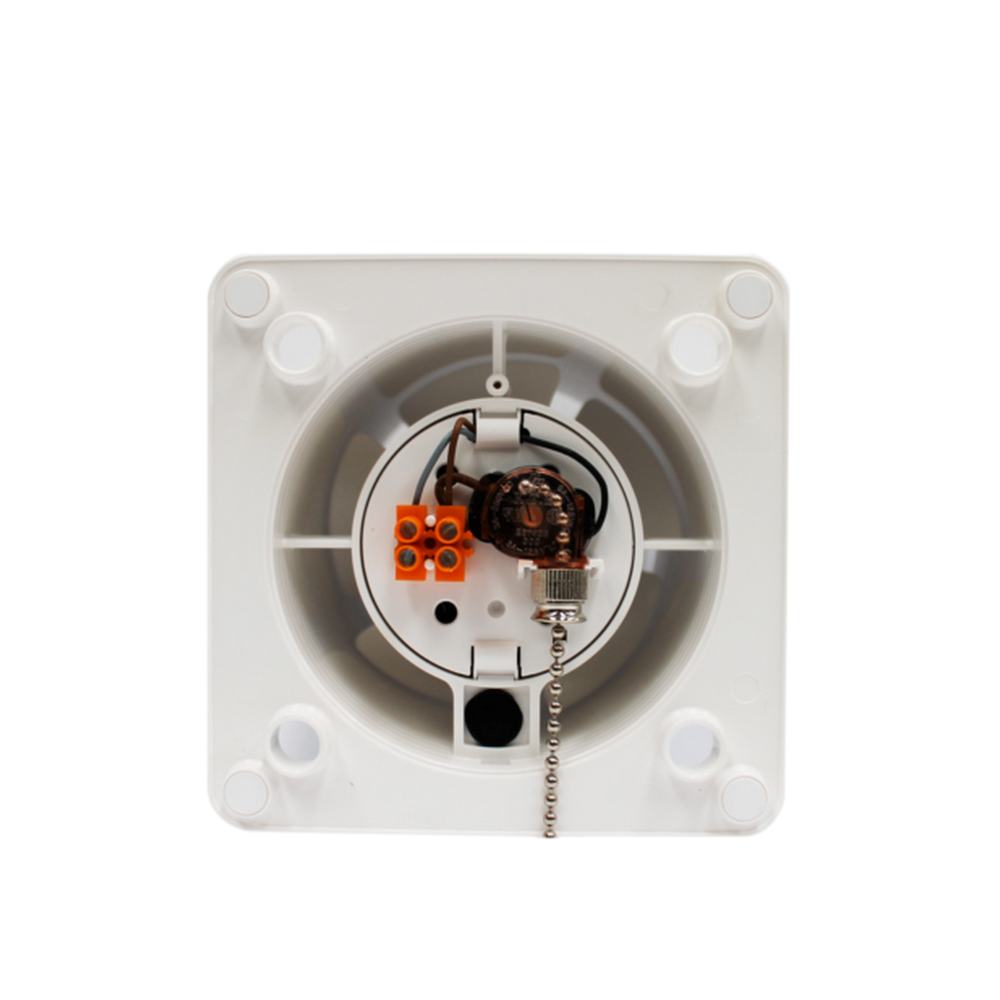

The speed adjustment can be activated via a chain control connected directly to the electric fan body.

Product code: REC.HRV
