Copper Tube Characteristics
Annealed (R220) seamless ACRCu-DHP 99.90 min. copper. Mechanical properties, dimensions, tolerances, and eccentricities according to EN 12735-1. Internal cleaning and dehumidification with inert gas, carbon residue <0.34 mg/dm², and ends sealed with caps in accordance with ASTM B280.

Insulation Characteristics
Extruded, seamless, closed-cell expanded polyethylene insulation sheath with a very high water vapor diffusion resistance factor (anti-condensation ≥ 15000) and Class 1 fire behavior. Polyethylene expansion is carried out without the use of harmful CFCs and HCFCs, as required by European Regulation EEC/EU 2037/2000.
Thermal conductivity at 40°C ≤ 0.40 W/m*K
Operating temperature -80°/+100°C
To prevent the crystallization process of PE exposed to sunlight, the insulating sheath in outdoor installations is protected by a silver-grey LDPE film capable of absorbing UV rays while maintaining its insulating properties. The anti-UV additive does not conflict with the halogen-free flame retardant (HALOGEN-FREE) present in the LDPE film.

Areas of Use
Specifically for air conditioning systems and the transport of R407C, R410A, and R32 refrigerant gases. Suitable for geographical areas with strong sunlight.

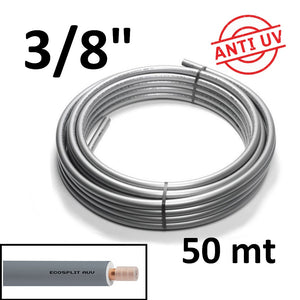

Product code: PEUV.3/8
