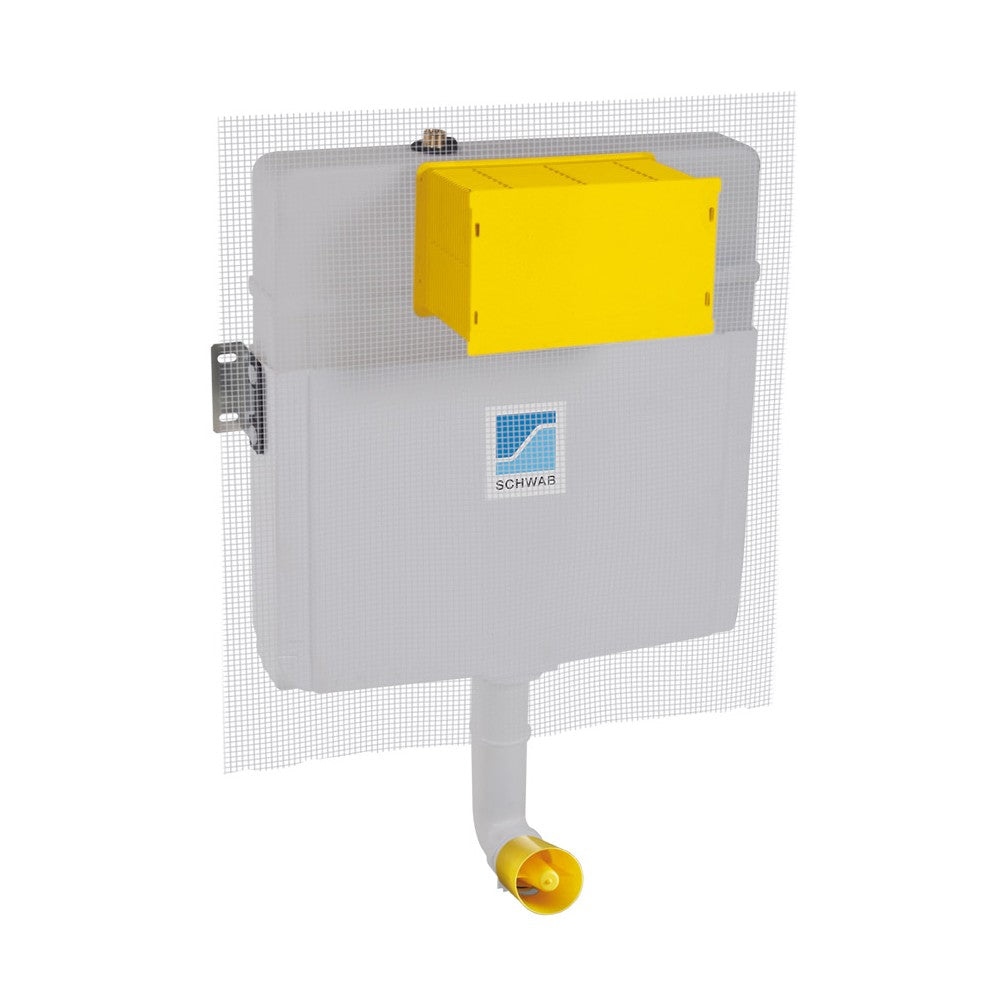

Concealed Toilet Cistern
SCHWAB UP 199
Application range
For concealed installation in masonry walls
Features
Integrated cistern UP 199
Front flush activation, dual flush (3/6 L)
Adjustable flush volume (large button 4.5-9 L, small button 2.5-4.5 L)
Water supply connection from the top, central
Non-pneumatic version
Anti-condensation insulation
Special features
Quiet fill valve (noise level class 1 ISO 3822)

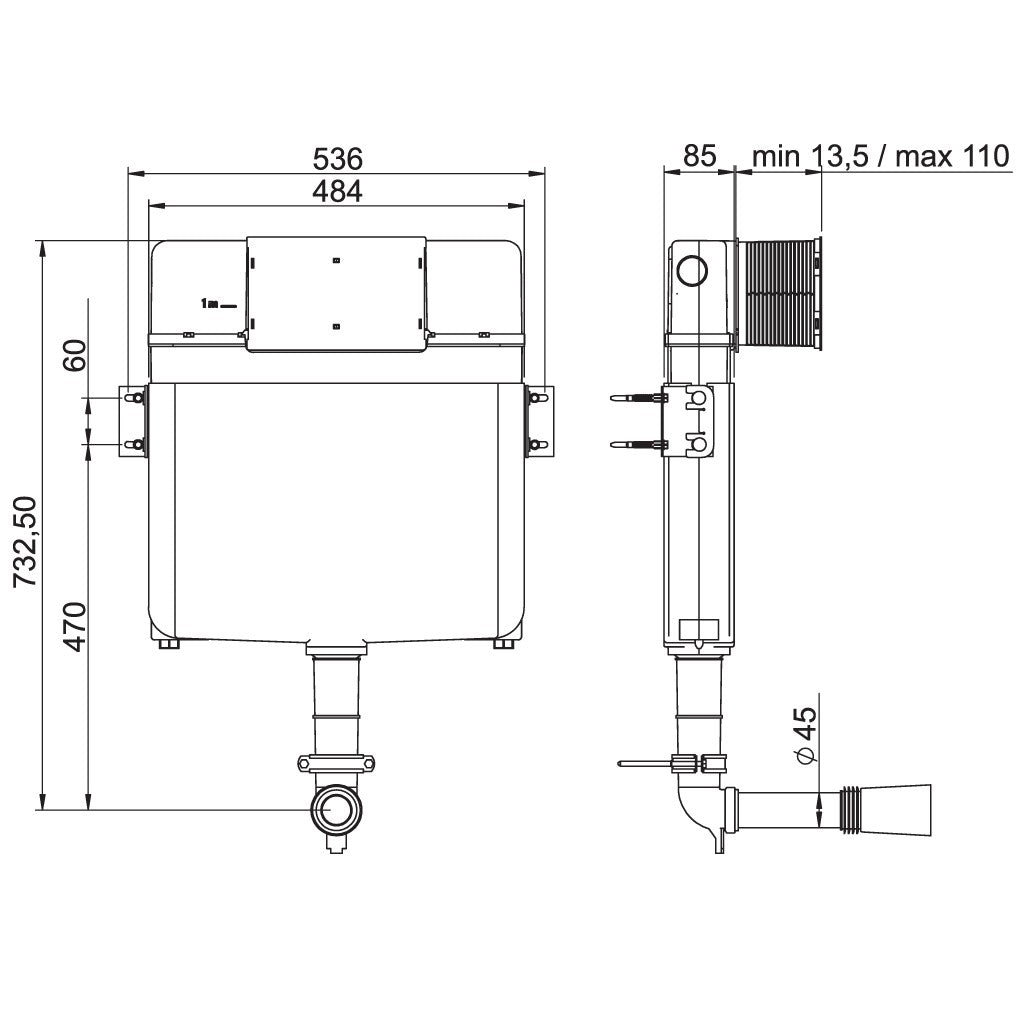

Depth 85 mm
Minimum distance between cistern and plate is 15 mm
Equipment
Concealed cistern equipped with pre-assembled stopcock at top, central
1/2" water connection
Drain pipe L = 300 mm
Plaster mesh
Complete installation and fixing material
Activation plate to be ordered separately
Product code: T02-0130-0250
