Digital controller for normal temperature with defrost by compressor stop

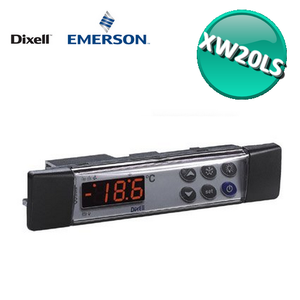

DIXELL XW20LS 230 VAC
Features:
A microprocessor controller, 38x185 format, suitable for applications on normal temperature refrigerants.
It has two relay outputs to control the compressor and the light. It is equipped with 1 NTC or PTC probe input for thermostatic control.
Here are the main features of the XW20LS:
Dimensions
< span style=' font-weight: normal;'>38x185mm
General
Power supply: 230Vac
Number of display digits: ± 3 d.p.
Number of keyboard buttons: 6
Probe inputs
Thermostat: NTC/PTC
Defrost: NTC/PTC
Condenser: NTC/PTC
Display: NTC/PTC
Digital input
Alarm, defrost start, door microswitch, pressure switch, probe: configurable
DI 2: configurable
Relay outputs
< span style ='font-style: normal;'>Compressor: 20A
Light: 8A, 16A
Remote display output: X-REP optional
Buzzer: optional
Internal clock: optional
Product code: XW20LS
