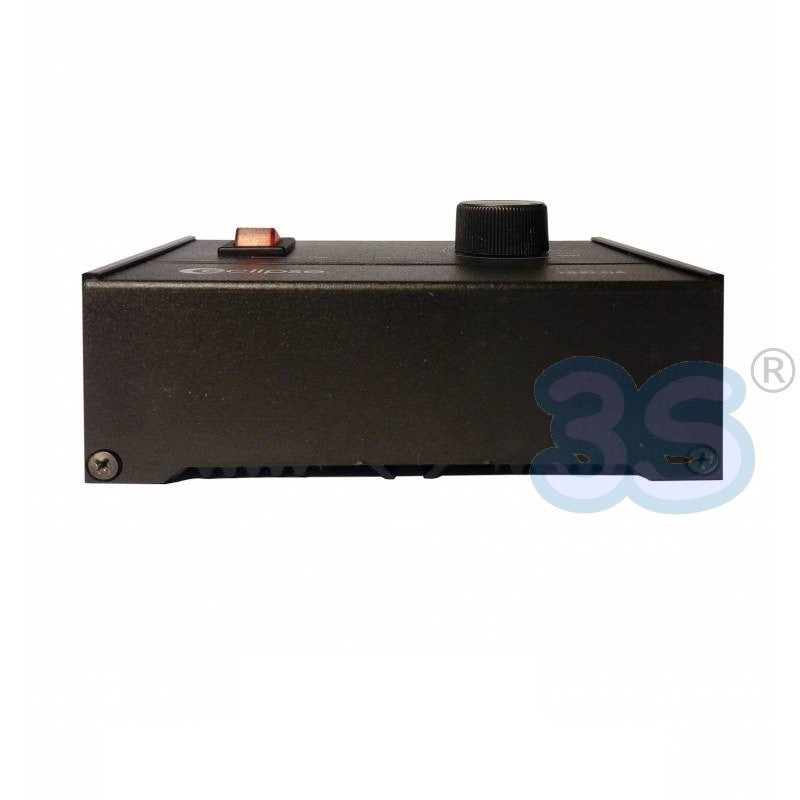

Electronic speed controller for fans and air extraction
Art. HHR-04 - SINGLE PHASE 230V.
FEATURES :
Specifically designed for civil use "wall-mounted version", the HHR04 controller is structured to support heavy applications such as continuous operation at maximum power (see technical data); allows its use in any sector.
Although it can control different types of loads, it has been expressly designed to be used in combination with fans.
Furthermore, the presence of the minimum speed adjustment trimmer allows adaptability to any motor with absorption within the permitted limits.
It complies with CE regulations regarding electromagnetic compatibility and low voltage.

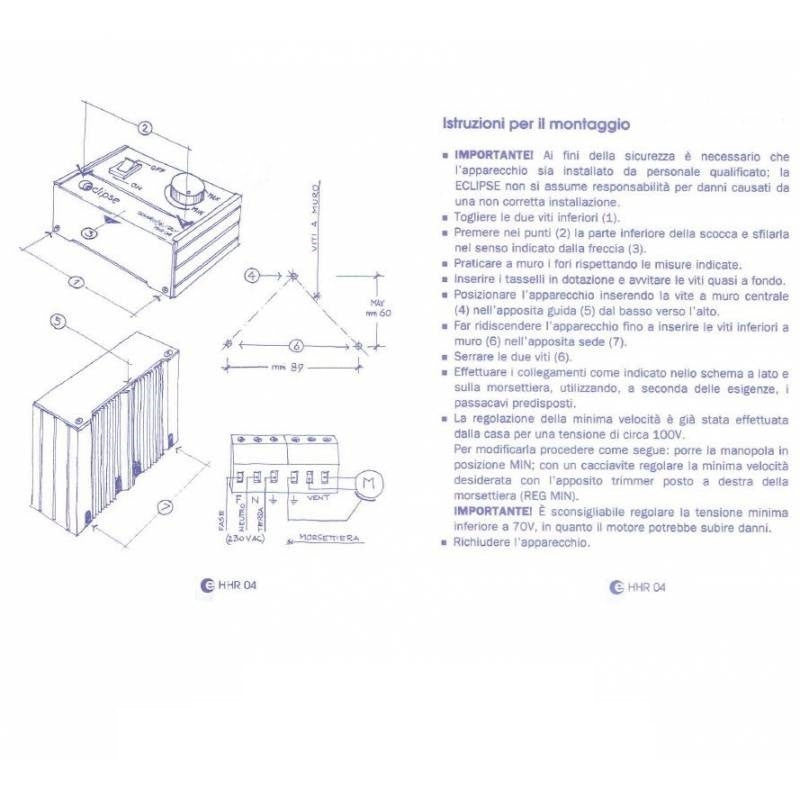

For installation and connections, follow the instructions provided with the product.
TECHNICAL DATA:
| Height | mm 76 |
| Width | mm 110 |
| Depth | mm 50 |
| Weight | Kg 0.2 |
| Brand | Eclipse |
| Model | HHR-04 |
| Voltage | 230 V 50/60 Hz |
| Absorption/Consumption | Min. and max current: 0.1- 4.0 A |
| Power | Inrush current: 8A -1sec. Peak current: 16A -1ms. |
| Optional Accessories | Fans or air extraction fans |
| Certification | CE |
| Important Notes: | Does not adjust the intensity of lamps, (Only for INDUCTIVE loads) |
| Installation: | Wall |
Product code: HHR-04
