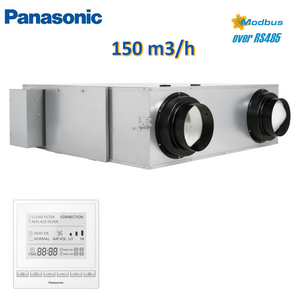

NEW ZY SERIES OF ADVANCED VENTILATION WITH ENERGY RECOVERY FROM PANASONIC - 150 m³/h
WITH NEW INTUITIVE CONTROL WITH RS485 CONNECTION
WITH NEW INTUITIVE CONTROL WITH RS485 CONNECTION
Description:
Panasonic's Energy Recovery Ventilation (ERV) can recover up to 83% of heat energy, providing balanced and energy-efficient ventilation.
- Recovers up to 83% of heat from exhaust air.
- Range of 9 models, including the 2,000 m³/h model.
- DC motors.
- ESP (external static pressure) up to 150 Pa.
- Built-in F7 filters on all models.
- Intuitive remote control with RS485 connection.
- Power supply voltage (Voltage) V: 220 - 240.
- Power supply voltage (Phase): 1φ.
- Power supply voltage (Frequency) Hz: 50.
- Dimensions (Height) mm: 289.
- Dimensions (Width) mm: 610.
- Dimensions (Depth) mm: 860.
- Net weight kg: 23.
Product code: FV-15ZY1G
