1 Hp REFRIGERANT GAS RECOVERY
SUITABLE FOR ALL TYPES OF REFRIGERANT GAS R407C-R22-410-410A-R32-R1234YF....
with DRY COMPRESSOR
< / p>

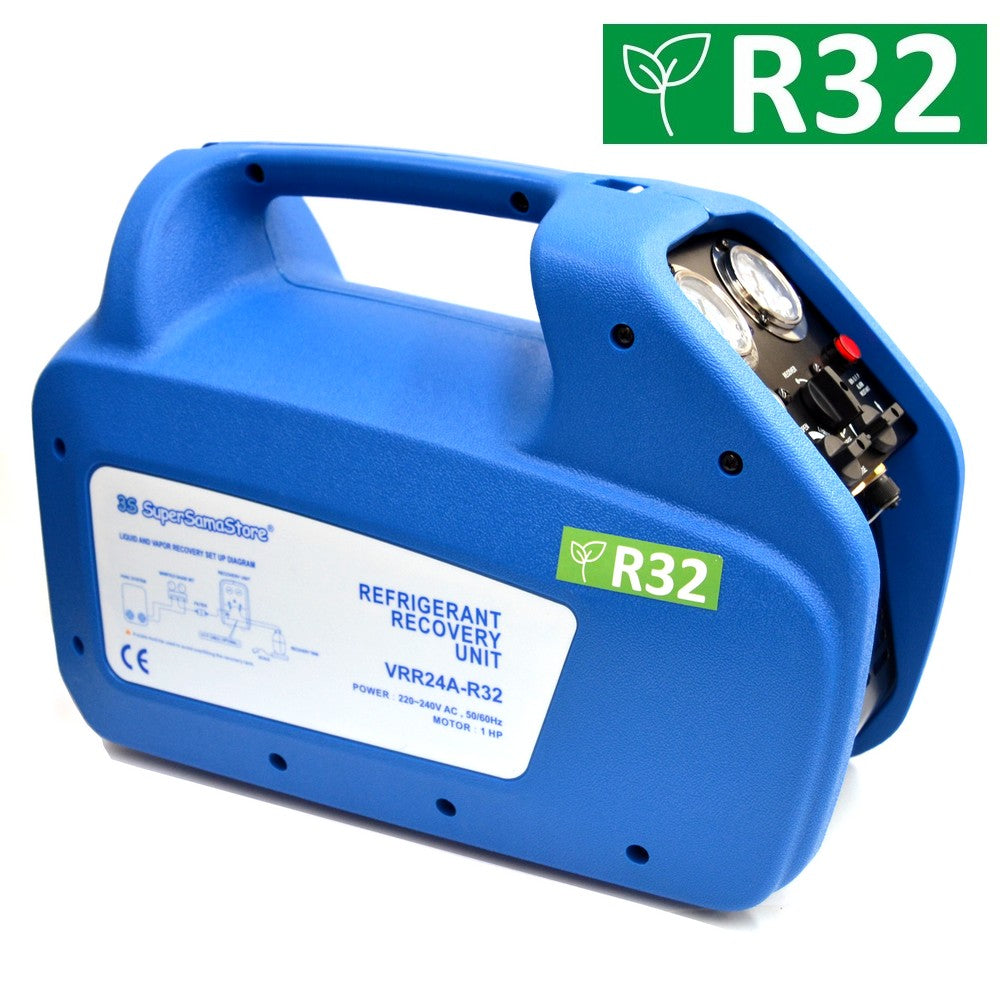

Refrigerant gas recovery unit
VOLT 220-50
Equipped with a dry type compressor (without lubrication) with a power of 1 HP
- < p style ='line-height: 150%;'>Oversized capacitor for quick and easy recovery
Recovery unit suitable for transferring all types of refrigerants including R410A, R32, R134A, R1234YF.....
The drive is equipped with a safety system that turns off the compressor when the compression reaches 38.5 bar
Revolutions per minute: 1450 - 50 Hz
Net weight 18 Kg
Dimensions 515x240x360 mm
< /li>

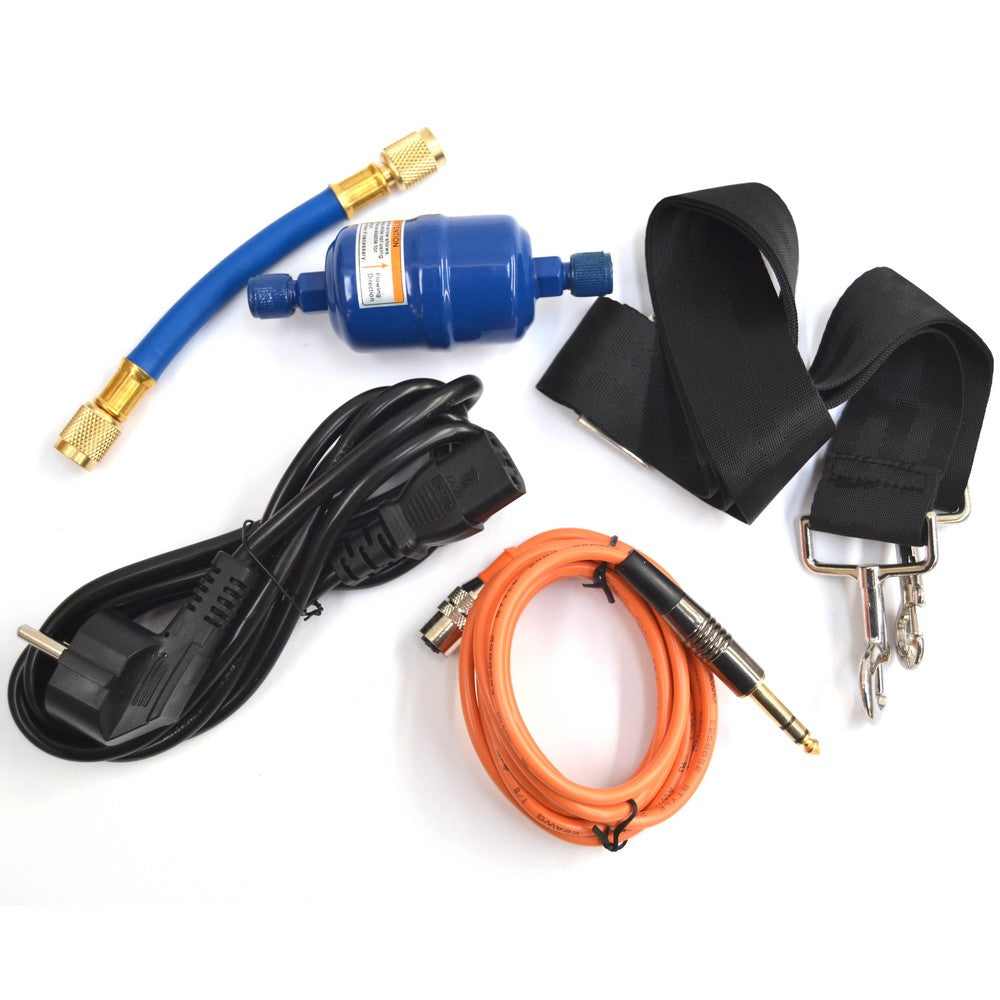

Accessories provided:
Carry strap
1/4 x 1/4 male/male dehydrator filter with flexible hose
Level sensor for prepared cylinders
Recovery data:
< p style='line-height: 150%;'>Category III: R12, R134a, R401c, R406a, R500Category IV: R22, R401a, R401b, R402b, R407c, R407d, R408a, R409a, R411a, R411b, R412a, R502, R509
Category V: R402a, R404a, R407a, R407b, R410a, R507, R32, R1234YF
| Category III | Category IV | Category V | |
| Steam | 0.40 Kg/min | 0.50 Kg/min | 0.50 Kg/min |
| Liquid | 3.00 Kg/min | 3.50 Kg/min | 3.50 Kg/min |
| Push/Pull | 7.50 Kg/min | 8.50 Kg/min | 9.50 Kg/min |
; Product code: VRR24A-R32
< p>
For other features, consult the instruction manual:
