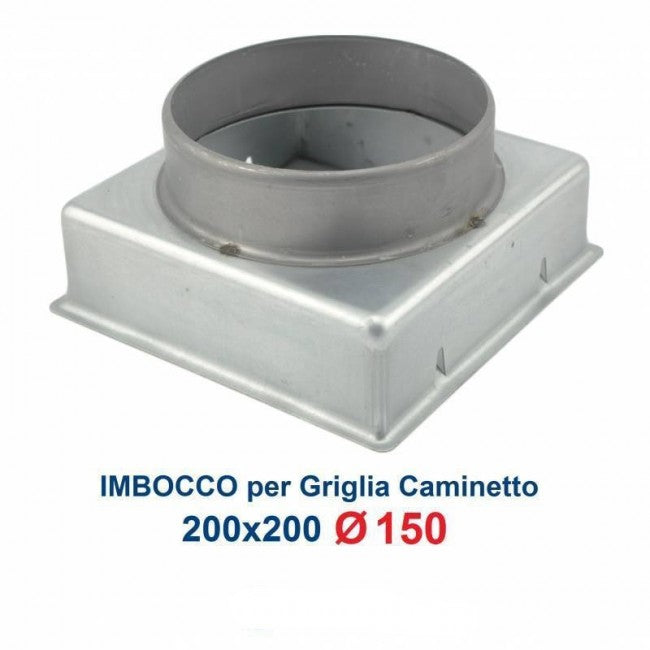

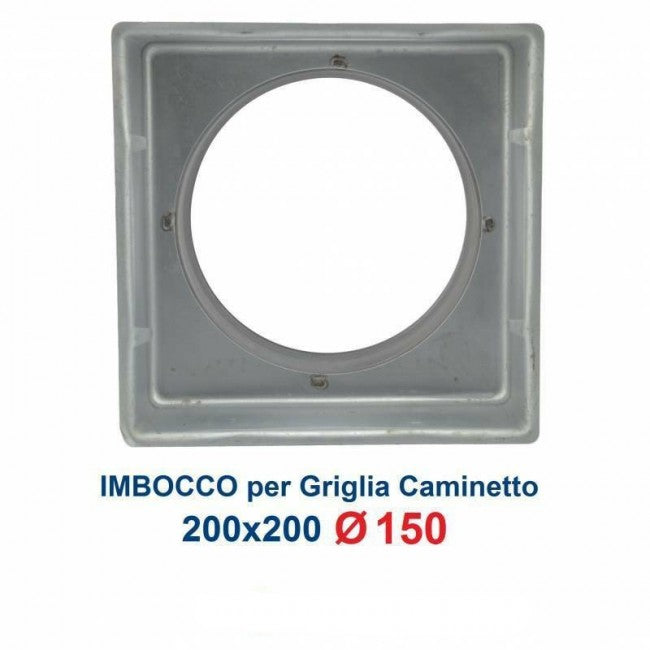

Adapter connection for fireplace nozzle (20x20 grill inlet, 150mm diameter)
FEATURES:
- Adapter with 20x20 inlet and 150mm rear diameter.
- The inlet allows the installation of a 20x20 FIREPLACE GRILLE version and then connects to a 150 mm diameter air pipe.
- Electro-galvanized steel connection e 6/10

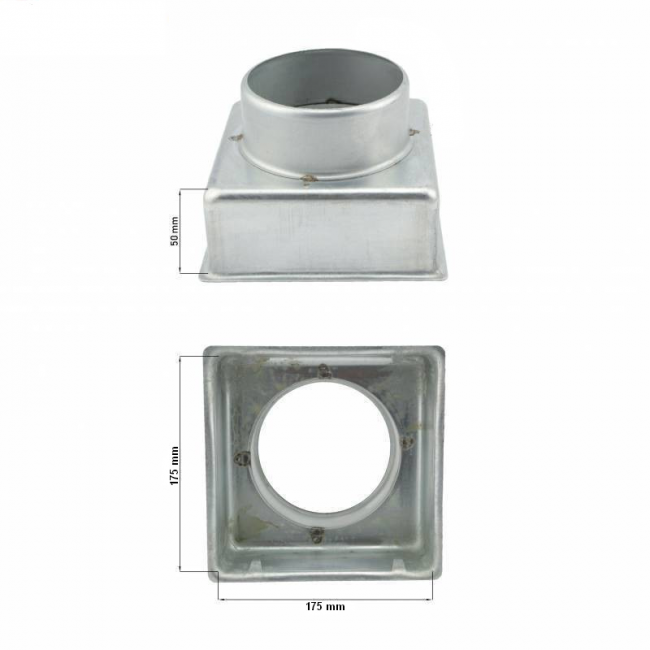

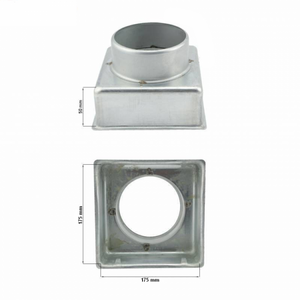

- External dimensions: 180x180 mm
- Internal dimensions: 175x175 mm
- Depth: 55 mm (excluding pipe connection)
- Diameter: 150 mm
TECHNICAL SPECIFICATIONS:
| Height | Internal 175 mm - External 180 mm |
| Width | Internal 175 mm - External 180 mm |
| Depth | 55 mm (excluding pipe connection) |
| Color | Galvanized steel sheet |
| Seat shape | Square |
| Material | Electro-galvanized steel |
| Connection | Dia.150mm |
| Optional accessories | 20x20 cm fireplace grilles |
Product code: IMB2020150
