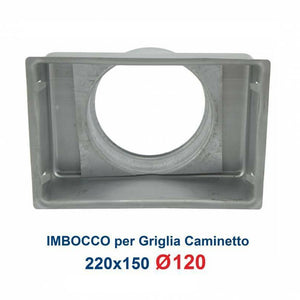

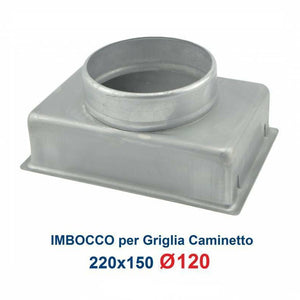

Adapter fitting for fireplace vent (Intake grille 22x15 diameter 120mm)
FEATURES:
- 22x15 intake adapter, 120mm rear diameter.
- The intake is used to install the 22x15 version FIREPLACE GRILLE and then connect to the 120mm diameter air duct.
- Electro-galvanized steel fitting, 6/10 thickness

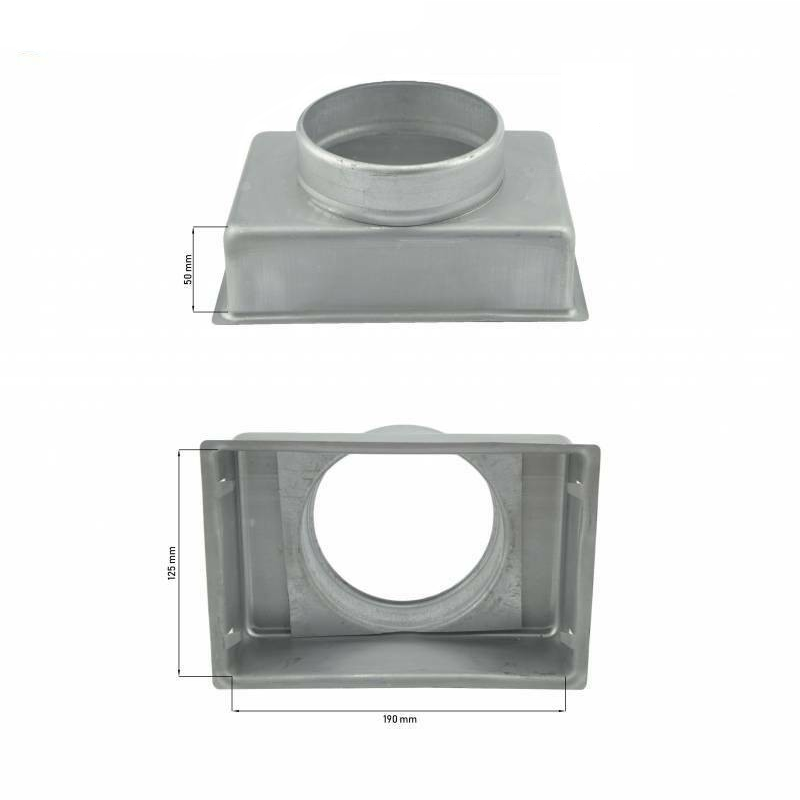

- External dimensions: 193x130 mm
- Internal dimensions: 190x125 mm
- Depth: 55 mm (excluding pipe connection)
- Diameter: 120 mm
TECHNICAL DATA SHEET:
| Height | Internal 125 mm - External 130 mm |
| Width | Internal 190 mm - External 193 mm |
| Depth | 55 mm (excluding tube connection) |
| Color | Galvanized steel sheet |
| Shape | Rectangular |
| Material | Electro-galvanized steel |
| Connection | Dia. 120mm |
| Optional accessories | Fireplace grilles 22x15 cm |
Product code: IMB2215120
