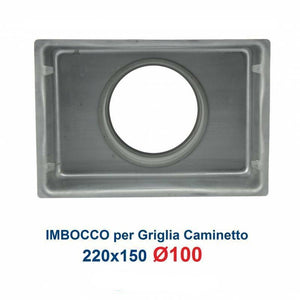

Adapter fitting for chimney opening (Inlet grille 22x15 diameter 100mm)
FEATURES:
- Inlet adapter 22x15 rear diameter 100mm.
- The inlet is used to install the 22x15 CHIMNEY GRILLE version and then connect to the 100mm diameter air pipe.
- Electro-galvanized steel fitting, 6/10 thick

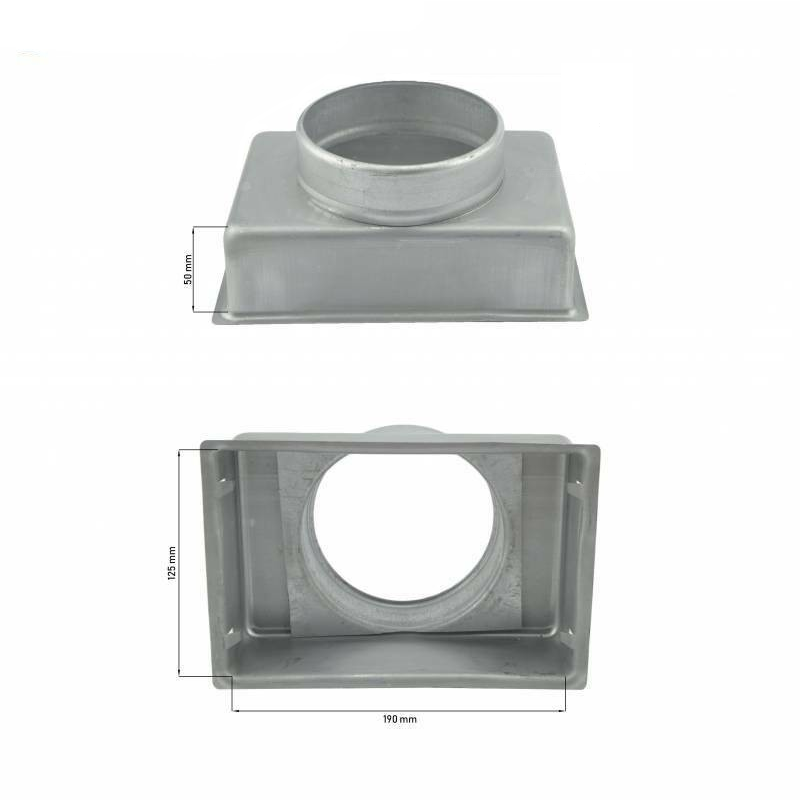

- External dimensions: 193x130 mm
- Internal dimensions: 190x125 mm
-
Depth: 55 mm (excluding tube connection)
Diameter: 100 mm
TECHNICAL DATA:
| Height | Internal 125 mm - External 130 mm |
| Width | Internal 190 mm - External 193 mm |
| Depth | 55 mm (excluding tube connection) |
| Color | Galvanized steel sheet |
| Seating shape | Rectangular |
| Material | Electro-galvanized steel |
| Connection | Dia. 100mm |
| Optional accessories | Chimney grilles 22x15 cm |
Product code: IMB2215100
