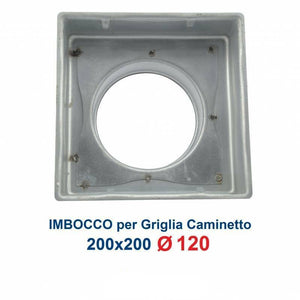

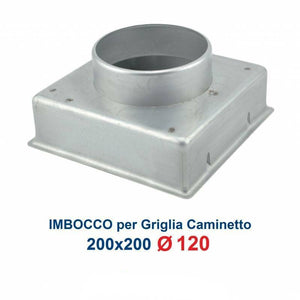

Adapter for chimney opening (20x20 inlet grille, 120mm diameter)
FEATURES:
- 20x20 inlet adapter with 120mm rear diameter.
- The inlet allows the installation of the 20x20 version CHIMNEY GRILLE and then connects to a 120 mm diameter air pipe.
- Electro-galvanized steel connection, 6/10 thickness

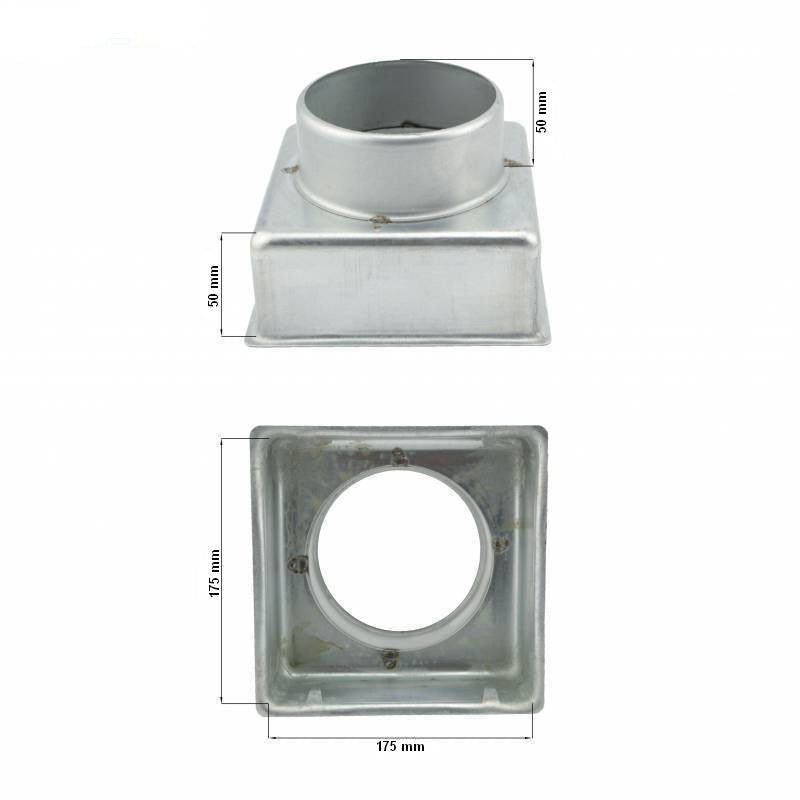

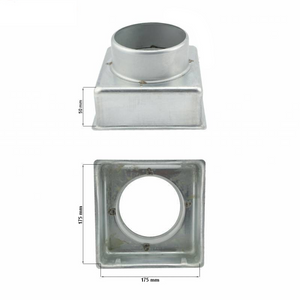

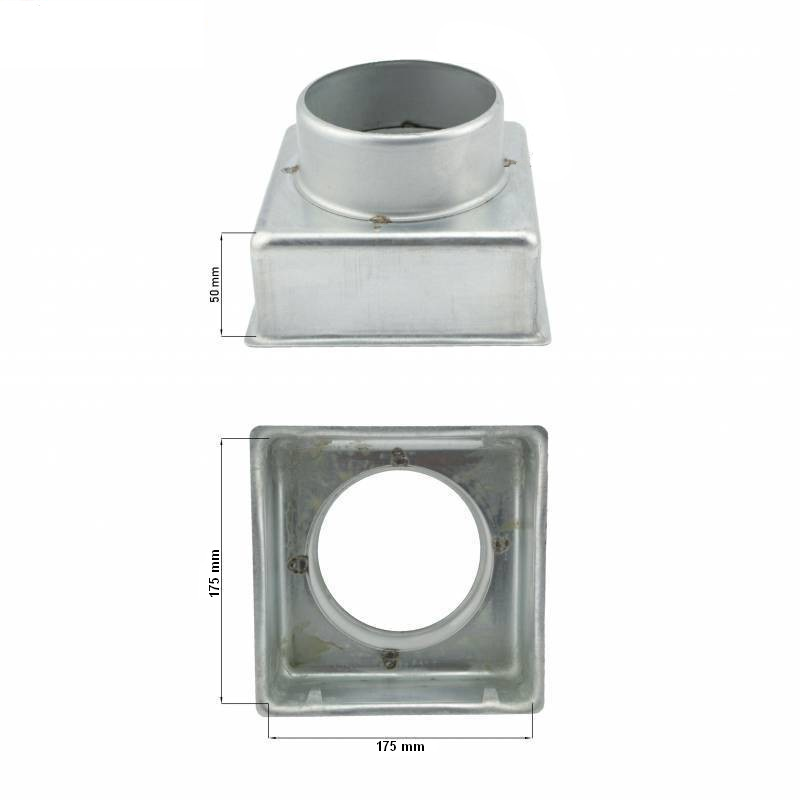

- External dimensions: 180x180 mm
- Internal dimensions: 175x175 mm
- Depth: 55 mm (excluding pipe connection)
- Diameter: 120 mm
TECHNICAL SPECIFICATIONS:
| Height | Internal 175 mm - External 180 mm |
| Width | Internal 175 mm - External 180 mm |
| Depth | 55 mm (excluding pipe connection) |
| Colour | Galvanized steel sheet |
| Seat shape | Square |
| Material | Electro-galvanized steel |
| Connection | Dia. 120mm |
| Optional accessories | 20x20 cm chimney grilles |
Product code: IMB2020120
